Latching / interface / switching relays DOLD

• According to IEC/EN 61 810-1
• Optionally contacts with up to a maximum 4 changeover contacts
• High thermal current Ith
• Pushbutton for manual actuation of the contact
• Operating position display
• Optionally without manual actuation and an operating position display
• Optionally for 2-wire initiator activation
• Optionally for switching low loads
• Optionally for switching lamps with parallel compensation (e.g. HQ lamps)
• Optionally for switching large inductive direct current loads
• Optionally with a recovery diode (only DC devices)
• Optionally with reliable release voltage of AC 120 V

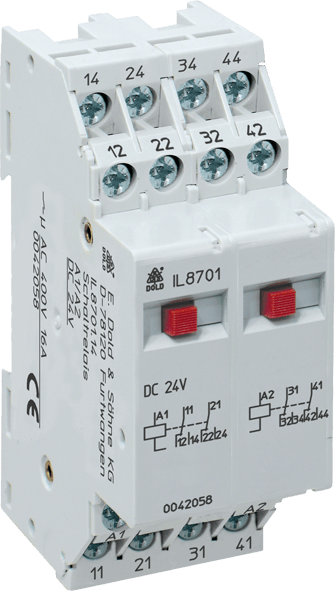

• IK 8701: width 17.5 mm
IL 8701: width 35 mm
IN 8701: width 52.5 mm

• According to IEC/EN 61 810-1
• Optionally contacts with up to a maximum 4 changeover contacts
• High thermal current Ith
• Pushbutton for manual actuation of the contact
• Operating position display
• Optionally without manual actuation and an operating position display
• Optionally for 2-wire initiator activation
• Optionally for switching low loads
• Optionally for switching lamps with parallel compensation (e.g. HQ lamps)
• Optionally for switching large inductive direct current loads
• Optionally with a recovery diode (only DC devices)
• Optionally with reliable release voltage of AC 120 V
• IK 8701: width 17.5 mm
IL 8701: width 35 mm
IN 8701: width 52.5 mm

• According to IEC/EN 60 255, IEC/EN 61 810-1
• With 1 or 2 changeover contacts as options
• High permanent current Ith
• For switching low loads as an option
• LED display (for AC/DC 24 V only)
• Width 17.5 mm

• According to IEC/EN 60 255, IEC/EN 61 810-1
• With service switch Auto/On/Off
• Test possible without influence on PLC
• Input AC/DC 24 V
• 1 changeover contact 5 A
• LED indicator
• Width 11.5 mm

• According to IEC/EN 60 255, IEC/EN 61 810-1
• Protective separation according to IEC/EN 61 140,
IEC/EN 60 947-1 in configuration with 1 changeover contact
• With input wiring protection against voltage surges
• With 1 or 2 changeover contacts as options
• High permanent current Ith
• For switching low loads as an option
• LED indicator
• Devices available in 2 enclosure version:
IK 3076: depth 59 mm with terminals at the bottom for
installation systems and industrial distribution systems
according to DIN 43 880
SK 3076: depth 98 mm with terminals at the top for
cabinets with mounting plate and cable duct
• Width 17.5 mm
