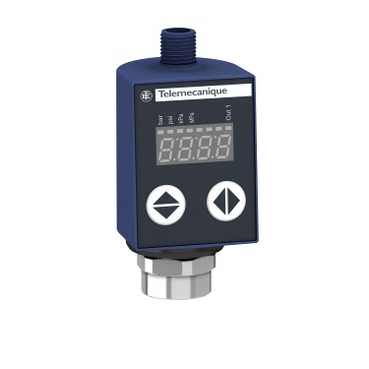

Schneider Electric — Telemecanique: Pressure sensors XMLR 600bar - G 1/4 male - 24VDC - 2xPNP - M12 XMLR600M2P01

Наличие
Цена
Для уточнения цены нам необходимо связаться с производителем. Отправляйте запрос по почте, через корзину сайта или через форму заявки.
Ответим на Ваш запрос завтра 23.10.2025 в течение дня.
Доставка
- транспортной компанией на Ваш выбор
- самовывоз из офиса в Санкт-Петербурге
- бесплатная доставка до терминала “Деловые Линии” в Санкт-Петербурге
- Main
Range of product OsiSense XM
Product or component type Electronic pressure sensors
Pressure sensor type Pressure transmitter
Pressure switch type of operation Pressure switch with 2 switching outputs
Device short name XMLR
Pressure sensor size 600 bar
8700 psi
60 MPa
Maximum permissible accidental pressure 1500 bar
21750 psi
150 MPa
Destruction pressure 2500 bar
36250 psi
250 MPa
Controlled fluid Fresh water (0...80 °C)
Air (-20...80 °C)
Hydraulic oil (-20...80 °C)
Refrigeration fluid (-20...80 °C)
Fluid connection type G 1/4A (male) conforming to DIN 3852-E
[Us] rated supply voltage 24 V DC SELV, voltage limits: 17...33 V
ComplementaryCurrent consumption <= 50 mA
Electrical connection 4 pins M12 male connector
Type of output signal Discrete
Discrete output type Solid state PNP, 2 NO/NC programmable
Maximum switching current 250 mA
Voltage drop <= 2 V
Adjustable range of switching point on rising pressure 48...600 bar
696...8700 psi
4.8...60 MPa
Adjustable range of switching point on falling pressure 30...582 bar
435...8439 psi
3...58.2 MPa
Minimum differential travel 18 bar
261 psi
1.8 MPa
Materials in contact with fluid 316L stainless steel
Front material Polyester
Housing material Polyacrylamide
316L stainless steel
Operating position Any position, but disposals can falsified the measurement in case of upside down mounting
Protection type Overload protection
Overvoltage protection
Reverse polarity
Short-circuit protection
Response time on output <= 5 ms for discrete output
Switching output time delay 0...50 s in steps of 1 second
Display type 4 digits 7 segments
Local signalling 2 LEDs yellow for light ON when switch is actuated
Display response time type Fast 50 ms
Normal 200 ms
Slow 600 ms
Delay first up <= 300 ms
Overall accuracy <= 1 % of the measuring range
Measurement accuracy on switching output <= 0.6 % of the measuring range
Repeat accuracy <= 0.2 % of the measuring range
Drift of the sensitivity +/- 0.03 % of measuring range/°C
Drift of the zero point +/- 0.1 % of measuring range/°C
Display accuracy <= 1 % of the measuring range
Mechanical durability >= 10000000 cycles
Depth 42 mm
Height 93 mm
Width 41 mm
Product weight 0.186 kg
[Uimp] rated impulse withstand voltage 0.5 kV DC
Electromagnetic compatibility Susceptibility to electromagnetic fields - test level 10 V/m (80...2000 MHz) conforming to EN/IEC 61000-4-3
Immunity to conducted RF disturbances - test level 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Surge immunity test - test level 1 kV conforming to EN/IEC 61000-4-5
Electrical fast transient/burst immunity test - test level 2 kV conforming to EN/IEC 61000-4-4
Electrostatic discharge immunity test - test level 8 kV air, 4 kV contact conforming to EN/IEC 61000-4-2
EnvironmentMarking CE
Product certifications CULus
EAC
Standards UL 61010-1
EN/IEC 61326-2-3
Ambient air temperature for operation -20...80 °C
Ambient air temperature for storage -40...80 °C
IP degree of protection IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529
Vibration resistance 20 gn (f = 10...2000 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 50 gn conforming to EN/IEC 60068-2-27
Download XMLR600M2P01 product datasheet 9a79d4d23345eebd0e05ac8555b2a0dc.pdf
