For gauge and absolute pressure, with flush-mounted diaphragm Siemens

Чертеж



SITRANS P pressure transmitters, DS III series for gage pressure, with flush-mounted diaphragm, dimensions in mm (inch)

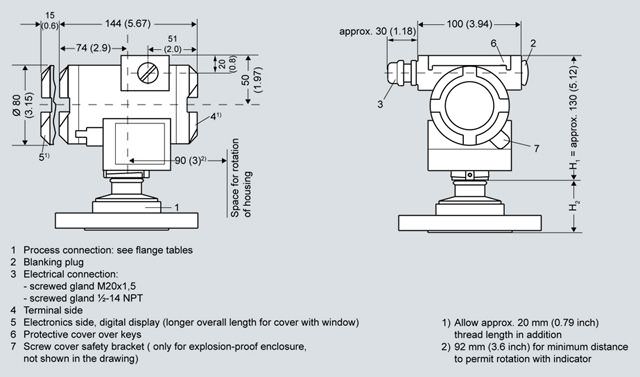

The diagram shows a SITRANS P DS III with an example of a flange. In this drawing the height is subdivided into H1 and H2.

H1 = Height of the SITRANS P300 up to a defined cross-section

H2 = Height of the flange up to this defined cross-section

Only the height H2 is indicated in the dimensions of the flanges.

Flanges as per EN and ASME

Flange to EN

EN 1092-1



DN

PN

∅D

H2

25

40

115 mm (4.5")

Approx. 52 mm (2")

25

100

140 mm (5.5")

40

40

150 mm (5.9")

40

100

170 mm (6.7")

50

16

165 mm (6.5")

50

40

165 mm (6.5")

80

16

200 mm (7.9")

80

40

200 mm (7.9")



Flanges to ASME

ASME B16.5



DN

class

∅D

H2

1“

150

110 mm (4.3")

Approx. 52 mm (2")

1“

300

125 mm (4.9")

1½“

150

130 mm (5.1")

1½“

300

155 mm (6.1")

2“

150

150 mm (5.9")

2“

300

165 mm (6.5")

3“

150

190 mm (7.5")

3“

300

210 mm (8.1")

4“

150

230 mm (9.1")

4“

300

255 mm (10.0")



NuG and pharmaceutical connections

Connections to DIN

DIN 11851 (milk pipe union)



DN

PN

∅D

H2

50

25

92 mm (3.6")

Approx. 52 mm (2")

80

25

127 mm (5.0")



TriClamp to DIN 32676



DN

PN

∅D

H2

50

16

64 mm (2.5")

Approx. 52 mm (2")

65

16

91 mm (3.6")



Other connections

Varivent connection



DN

PN

∅D

H2

40 ... 125

40

84 mm (3.3")

Approx. 52 mm (2")



Biocontrol connection



DN

PN

∅D

H2

50

16

90 mm (3.5")

Approx. 52 mm (2")

65

16

120 mm (4.7")



Sanitary process connection to DRD



DN

PN

∅D

H2

65

40

105 mm (4.1")

Approx. 52 mm (2")




Sanitary process screw connection to NEUMO Bio-Connect



DN

PN

∅D

H2

50

16

82 mm (3.2")

Approx. 52 mm (2")

65

16

105 mm (4.1")

80

16

115 mm (4.5")

100

16

145 mm (5.7")

2”

16

82 mm (3.2")

2½”

16

105 mm (4.1")

3”

16

105 mm (4.1")

4”

16

145 mm (5.7")



Sanitary process connection to NEUMO Bio-Connect flange connection



DN

PN

∅D

H2

50

16

110 mm (4.3")

Approx. 52 mm (2")

65

16

140 mm (5.5")

80

16

150 mm (5.9")

100

16

175 mm (6.9")

2”

16

100 mm (3.9")

2½”

16

110 mm (4.3")

3”

16

140 mm (5.5")

4”

16

175 mm (6.9")



Sanitary process connection to NEUMO Bio-Connect clamp connection



DN

PN

∅D

H2

50

16

77.4 mm (3.0")

Approx. 52 mm (2")

65

10

90.9 mm (3.6")

80

10

106 mm (4.2")

100

10

119 mm (4.7")

2”

16

64 mm (2.5")

2½”

16

77.4 mm (3.0")

3”

10

90.9 mm (3.6")

4”

10

779 mm (4.7")



Sanitary process connection to NEUMO Bio-Connect S flange connection



DN

PN

∅D

H2

50

16

125 mm (4.9")

Approx. 52 mm (2")

65

10

145 mm (5.7")

80

10

155 mm (6.1")

100

10

180 mm (7.1")

2”

16

125 mm (4.9")

2½”

10

135 mm (5.3")

3”

10

145 mm (5.7")

4”

10

180 mm (7.1")



Threaded connection G¾", G1" and G2" acc. to DIN 3852



DN

PN

∅D

H2

¾“

63

37 mm (1.5")

Approx. 45 mm (1.8")

1“

63

48 mm (1.9")

Approx. 47 mm (1.9")

2“

63

78 mm (3.1")

Approx. 52 mm (2")



Tank connection TG 52/50 and TG52/150



DN

PN

∅D

H2

25

40

63 mm (2.5")

Approx. 63 mm (2.5")

25

40

63 mm (2.5")

Approx. 170 mm (6.7")



SMS socket with union nut



DN

PN

∅D

H2

2“

25

84 mm (3.3")

Approx. 52 mm (2.1")

2½“

25

100 mm (3.9")

3“

25

114 mm (4.5")



SMS threaded socket



DN

PN

∅D

H2

2“

25

70 x 1/6 mm

Approx. 52 mm (2.1")

2½“

25

85 x 1/6 mm

3“

25

98 x 1/6 mm



IDF socket with union nut



DN

PN

∅D

H2

2“

25

77 mm (3")

Approx. 52 mm (2.1")

2½“

25

91 mm (3.6")

3“

25

106 mm (4.2")



IDF threaded socket



DN

PN

∅D

H2

2“

25

64 mm (2.5")

Approx. 52 mm (2.1")

2½“

25

77,5 mm (3.1")

3“

25

91 mm (3.6")



Aseptic threaded socket to DIN 11864-1 Form A



DN

PN

∅D

H2

50

25



Approx. 52 mm (2.1")

65

25



80

25



100

25




Aseptic flange with notch to DIN 11864-2 Form A



DN

PN

∅D

H2

50

16



Approx. 52 mm (2.1")

65

16



80

16



100

16




Aseptic flange with groove to DIN 11864-2 Form A



DN

PN

∅D

H2

50

16



Approx. 52 mm (2.1")

65

16



80

16



100




Aseptic clamp with groove to DIN 11864-3 Form A



DN

PN

∅D

H2

50

25



Approx. 52 mm (2.1")

65

25



80

16



100

16

Технические данные



Запрос коммерческого предложения

×


    * Поля, обязательные для заполнения.

    Сообщение отправлено

    ×

    В ближайшее время сообщение будет обработано.

    Письмо с номером обращения отправлено на Ваш почтовый ящик.

    Спасибо за то, что выбрали Первый ZIP!

    Что-то пошло не так...

    ×

    К сожалению, наша система расценила Ваше сообщение как спам.

    Если это произошло по ошибке, пожалуйста, обратитесь к нам по электронной почте.

    Приносим извинения за возможные неудобства.

    ↑
    Заказчик
    Вы отправляете нам запрос
    Менеджер
    Если у нас есть прайс-лист, мы отправляем Вам ответ в течение дня.
    А если у нас нет прайс-листа
    по запрошенным товарам?
    МенеджерГорыОблакаПроизводитель
    Если у нас нет прайс-листа, мы отправляем запрос производителю.
    ЧасыОтвет от производителя может занять до 5 дней и более.
    СуперменОблака
    Запрос производителю мы отправляем только для конечных потребителей.
    Человек
    Торгующим организациям коммерческие предложения предоставляются только по прайсовым позициям:
    Siemens
    Beckhoff
    Pepperl+Fuchs
    Phoenix Contact
    PILZ
    Turck
    Leuze Electronic
    Endress+Hauser
    Murr Elektronik
    Schmersal

    SITRANS P, DS III series for gauge and absolute pressure, with flush-mounted diaphragm



    HART

    PROFIBUS PA or Foundation Fieldbus

    Input of gauge pressure, with flush-mounted diaphragm



    Measured variable

    Gauge pressure, flush-mounted

    Spans (infinitely adjustable) or nominal measuring range and max. permissible test pressure

    Span

    Max. perm. test pressure

    Nominal measuring range

    Max. perm. test pressure



    0.01 ... 1 bar g
    (0.15 ... 14.5 psi g)

    6 bar g
    (87 psi g)

    1 bar g
    (14.5 psi g)

    6 bar g
    (87 psi g)



    0.04 ... 4 bar g
    (0.58 ... 58 psi g)

    10 bar g
    (145 psi g)

    4 bar g
    (58 psi g)

    10 bar g
    (145 psi g)



    0.16 ... 16 bar g
    (2.32 ... 232 psi g)

    32 bar g
    (464 psi g)

    16 bar g
    (232 psi g)

    32 bar g
    (464 psi g)



    0.6 ... 63 bar g
    (9.14 ... 914 psi g)

    100 bar g
    (1450 psi g)

    63 bar g
    (914 psi g)

    100 bar g
    (1450 psi g)

    Lower measuring limit

    -100 mbar g (-1.45 psi g)

    Upper measuring limit

    100 % of max. span

    100 % of the max. nominal measuring range

    Input of absolute pressure, with flush-mounted diaphragm



    Measured variable

    Absolute pressure, flush-mounted

    Spans (infinitely adjustable) or
    nominal measuring range and
    max. permissible test pressure

    Span

    Max. perm. test pressure

    Nominal measuring range

    Max. perm. test pressure



    43 ... 1300 mbar a
    (0.62 ... 18.9 psi a)

    10 bar a
    (145 psi a)

    1300 mbar a
    (18.9 psi a)

    10 bar a
    (145 psi a)



    0,16 ... 5 bar a
    (2.32 ... 72.5 psi a)

    30 bar a
    (435 psi a)

    5 bar a
    (72.5 psi a)

    30 bar a
    (435 psi a)



    1 ... 30 bar a
    (14.5 ... 435 psi a)

    100 bar a
    (1450 psi a)

    30 bar a
    (435 psi a)

    100 bar a
    (1450 psi a)

    Lower measuring limit

    0 bar a (0 psi a)

    Upper measuring limit

    100% of max. span

    100% of the max. nominal measuring range

    Output



    Output signal

    4 ... 20 mA

    Digital PROFIBUS PA or Foundation Fieldbus signal

    • Lower limit (infinitely adjustable)

    3.55 mA, factory preset to 3.84 mA

    -

    • Upper limit (infinitely adjustable)

    23 mA, factory preset to 20.5 mA or optionally set to 22.0 mA

    -

    Load


    • Without HART communication

    RB ≤ (UH - 10.5 V)/0.023 A in Ω,
    UH : Power supply in V

    -

    • With HART communication

    RB = 230 ... 500 Ω (SIMATIC PDM) or
    RB = 230 ... 1100 Ω (HART Communicator)

    -

    Physical bus

    -

    IEC 61158-2

    Protection against polarity reversal

    Protected against short-circuit and polarity reversal. Each connection against the other with max. supply voltage.

    Measuring accuracy

    Acc. to EN 60770-1

    Reference conditions
    (All error data refer always refer to the set span)

    Increasing characteristic, start-of-scale value 0 bar, stainless steel seal diaphragm, silicone oil filling, room temperature 25 °C (77 °F)) r: Span ratio
    (r = max. span / set span)

    Error in measurement and fixed-point setting (including hysteresis and repeatability)




    Gauge pressure,
    flush-mounted

    Absolute pressure,
    flush-mounted

    Gauge pressure,
    flush-mounted

    Absolute pressure,
    flush-mounted

    • Linear characteristic


    ≤ 0,075 %

    ≤ 0.2 %

    • r ≤ 10

    ≤ (0.0029 · r + 0.071) %

    ≤ 0.2 %


    • 10 < r ≤ 30

    ≤ (0.0045 · r + 0.071)%

    ≤ 0.4 %


    • 30 < r ≤ 100

    ≤ (0.005 · r + 0.05)%



    Long-term drift (temperature change ±30 °C (±54 °F))

    ≤ (0.25 · r)% every 5 years



    ≤ 0.25 % every 5 years



    Influence of ambient temperature


    • at -10 ... +60 °C (14 ... 140 °F)

    ≤ (0.1 · r + 0.2)%

    ≤ (0.2 · r + 0.3)%

    ≤ 0.3 %

    ≤ 0.5 %

    • at -40 ... -10 °C and +60 ... +85 °C
      (-40 ... +14 °F and 140 ... 185 °F)

    ≤ (0.1·r + 0.15) %/10 K

    ≤ (0.2·r + 0.3) %/10 K

    ≤ 0.25 %/10 K

    ≤ 0.5 %/10 K

    Influence of mounting position

    0.1 mbar g (0.00145 psi g) per 10° inclination

    Measured Value Resolution

    -

    3 · 10-5 of nominal measuring range

    Influence of the medium temperature (only with flush-mounted diaphragm)


    • Temperature difference between medium temperature and ambient temperature

    3 mbar/10 K (0.04 psi/10 K)

    Rated conditions



    Installation conditions



    Ambient temperature

    Observe the temperature class in areas subject to explosion hazard.

    • Measuring cell with silicone oil

    -40 ... +85 °C (-40 ... +185 °F)

    • Measuring cell with Neobee oil (with flush-mounted diaphragm)

    -10 ... +85 °C (14 ... 185 °F)

    • Measuring cell with inert liquid (not with flush-mounted diaphragm)

    -20 ... +85 °C (-4 ... +185 °F)

    • Digital display

    -30 ... +85 °C (-22 ... +185 °F)

    • Storage temperature

    -50 ... +85 °C (-58 ... +185 °F)
    (for Neobee: -20 ... +85 °C (-4 ... +185 °F))

    • Climatic class

    • Condensation

    Permissible

    Degree of protection (to EN 60529)

    IP65, IP68, NEMA 4X, enclosure cleaning, resistant to lyes, steam to 150° C (302 °F)

    • Electromagnetic Compatibility

    • Emitted interference and interference immunity

    Acc. to EN 61326 and NAMUR NE 21

    Medium conditions



    Temperature of medium


    • Measuring cell with silicone oil

    -40 ... +100 °C (-40 ... +212 °F)

    • Measuring cell with silicone oil (with flush-mounted diaphragm)

    -40 ... +150 °C (-40 ... +302 °F)

    • Measuring cell with Neobee oil (with flush-mounted diaphragm)

    -10 ... +150 °C (14 ... 302 °F)

    • Measuring cell with silicone oil, with temperature decoupler (only with flush-mounted diaphragm)

    -40 ... +200 °C (-40 ... +392 °F)

    • Measuring cell with inert liquid

    -20 ... +100 °C (-4 ... +212 °F)

    • Measuring cell with high-temperature oil

    -10 ... +250 °C (14 ... 482 °F)

    Process connection

    • Flanges as per EN and ASME
    • F&B and pharmaceutical flanges

    Surface quality touched-by-media

    Ra values ≤ 0.8 µm (3.15.10-8 inch)/welded seams Ra ≤ 1.6 µm (6.4.10-8 inch)

    (process connections according to 3A; Ra values ≤ 0.8 µm (3.15.10-8 inch)/welded seams Ra ≤ 0.8 µm (3.15.10-8 inch)

    Design



    Weight (without options)

    ≈ 1.5 kg (≈ 3.3 lb)

    Enclosure material

    Low-copper die-cast aluminum, GD-AlSi 12 or stainless steel precision casting, mat. No. 1.4408

    Wetted parts materials

    Stainless steel, mat. No. 1.4404/316L

    Measuring cell filling

    Silicone oil or inert filling liquid

    Power supply UH



    Supplied through bus

    Terminal voltage on transmitter

    10.5 ... 45 V DC
    10.5 ... 30 V DC in intrinsically-safe mode

    -

    Separate 24 V power supply necessary

    -

    No

    Bus voltage


    • Not Ex

    -

    9 ...32 V

    • With intrinsically-safe operation

    -

    9 ...24 V

    Current consumption


    • Basic current (max.)

    -

    12.5 mA

    • Startup current ≤ basic current

    -

    Yes

    • Max. current in event of fault

    -

    15.5 mA

    Fault disconnection electronics (FDE) available

    -

    Yes

    Certificates and approvals



    Classification according to PED 97/23/EC

    For gases of fluid group 1 and liquids of fluid group 1; complies with requirements of article 3, paragraph 3 (sound engineering practice)

    Explosion protection


    • Intrinsic safety "i"

    PTB 99 ATEX 2122

    • Marking

    Ex II 1/2 G EEx ia/ib IIB/IIC T6

    • Permissible ambient temperature

    -40 ... +85 °C (-40 ... +185 °F) temperature class T4;
    -40 ... +70 °C (-40 ... +158 °F) temperature class T5;
    -40 ... +60 °C (-40 ... +140 °F) temperature class T6

    • Connection

    To certified intrinsically-safe circuits with peak values:
    Ui = 30 V, Ii = 100 mA,
    Pi = 750 mW; Ri = 300 Ω

    FISCO supply unit:
    Uo = 17.5 V, Io = 380 mA, Po = 5.32 W

    Linear barrier:
    Uo = 24 V, Io = 250 mA, Po = 1.2 W

    • Effective internal inductance/capacitance

    Li = 0.4 mH, Ci = 6 nF

    Li = 7 μH, Ci = 1.1 nF

    • Explosion-proof "d"

    PTB 99 ATEX 1160

    • Marking

    Ex II 1/2 G EEx d IIC T4/T6

    • Permissible ambient temperature

    -40 ... +85 °C (-40 ... +185 °F) temperature class T4;
    -40 ... +60 °C (-40 ... +140 °F) temperature class T6

    • Connection

    To circuits with values: UH = 10.5 ... 45 V DC

    To circuits with values: UH = 9 ... 32 V DC

    • Dust explosion protection for zone 20

    PTB 01 ATEX 2055

    • Marking

    Ex II 1 D IP65 T 120 °C
    Ex II 1/2 D IP65 T 120 °C

    • Permissible ambient temperature

    -40 ... +85 °C (-40 ... +185 °F)

    • Max. surface temperature

    120 °C (248 °F)

    • Connection

    To certified intrinsically-safe circuits with peak values:
    Ui = 30 V, Ii = 100 mA,
    Pi = 750 mW, Ri = 300 Ω

    FISCO supply unit:
    Uo = 17.5 V, Io = 380 mA, Po = 5.32 W

    Linear barrier:
    Uo = 24 V, Io = 250 mA, Po = 1.2 W

    • Effective internal inductance/capacitance

    Li = 0.4 mH, Ci = 6 nF

    Li = 7 μH, Ci = 1.1 nF

    • Dust explosion protection for zone 21/22

    PTB 01 ATEX 2055

    • Marking

    Ex II 2 D IP65 T 120 °C

    • Connection

    To circuits with values: UH = 10.5 ... 45 V DC; Pmax = 1.2 W

    To circuits with values: UH = 9 ... 32 V DC; Pmax = 1.2 W

    • Type of protection "n" (zone 2)

    TÜV 01 ATEX 1696 X

    Planned

    • Marking

    Ex II 3 G EEx nA L IIC T4/T5/T6

    -

    • Explosion protection acc. to FM

    Certificate of Compliance 3008490

    • Identification (XP/DIP) or (IS); (NI)
