Supplementary electronics for 4-wire connection Siemens

Обзор

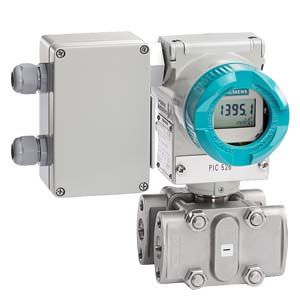

SITRANS P pressure transmitter with supplementary electronics for 4-wire connection

Direct connection of the supplementary electronics to a SITRANS P pressure transmitter from the DS III HART series produces a transmitter for four-wire connection.

The supplementary electronics cannot be attached to explosion-protected pressure transmitters. The supplementary electronics is fitted in a light metal housing which is mounted on the left side of the pressure transmitter.

Note on ordering:

The supplementary electronics has to be be ordered through the supplementary options of the pressure transmitter in question.

Чертеж



SITRANS P pressure transmitters with supplementary electronics for four-wire connection, dimension drawing, dimensions in mm (inch)

Схема подключения



Supplementary electronics for 4-wire connection, connection diagram

Технические данные



SITRANS P, supplementary electronics for 4-wire connection

Output



Output signal

0 ... 20 mA or 4 ... 20 mA

Load

Max. 750 Ω

Voltage measurement

Linear (square-rooting in transmitter if necessary)

Electrical isolation

Between power supply and input/ output

Measuring accuracy



Conformity error (in addition to transmitter)

≤ 0.15 % of set span

Influence of ambient temperature

≤ 0.1 % per 10 K

Power supply effect

≤ 0.1 % per 10 % change in voltage or frequency

Load effect

≤ 0.1 % per 100 % change

Rated conditions



Ambient temperature

-20 ... +80 °C (-4 ... +176 °F)

Storage temperature

-50 ... +85 °C (-58 ... +185 °F)

Degree of protection

IP54 to EN 60529

Electromagnetic compatibility (EMC)

EN 50081, EN 50082

Structural design



Dimensions (W x H x D) in mm (inch)

80 x 120 x 60 (3.15 x 4.72 x 2.36)

Electrical connection

Screw terminals (Pg 13.5 cable inlet) or Han 7D / Han 8U plug

Power supply



Supply voltage

230 V AC (-10 ... +6 %, 47 ... 63 Hz, approx. 6 VA) or

24 V AC/DC (24 V AC ± 10 %, 47 ... 63 Hz, approx. 3 VA)

Permissible ripple (within the specified limits)

Approx. 2.5 V pp
