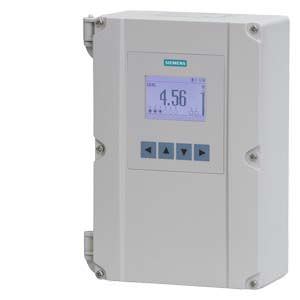

HydroRanger 200 HMI Siemens

Область применения



For water authorities, municipal water, and wastewater plants, HydroRanger 200 HMI is an economical, low-maintenance solution delivering control efficiency and productivity needed to meet today’s exacting standards. It offers single point monitoring with all models, and optional dual-point monitoring with 6 relay model. As well, it has digital communications with built-in Modbus RTU via RS 485.

The standard 6 relay HydroRanger 200 HMI will monitor open channel flow and features advanced relay alarming and pump control functions as well as volume conversion. It is compatible with SIMATIC PDM, allowing for PC configuration and set-up. Sonic Intelligence advanced echo-processing software provides increased reading reliability.

HydroRanger 200 HMI uses proven continuous ultrasonic echo ranging technology to monitor water and wastewater of any consistency up to 15 m (50 ft) in depth. Achievable resolution is 0.1 % with accuracy to 0.25 % of range. Unlike contacting devices, HydroRanger 200 HMI is immune to problems caused by suspended solids, harsh corrosives, grease or silt in the effluent, reducing downtime.

  • Key Applications: wet wells, flumes/weirs, bar screen control

Обзор



HydroRanger 200 HMI is an ultrasonic level controller for up to six pumps and provides control, differential control, and open channel flow monitoring.

Чертеж

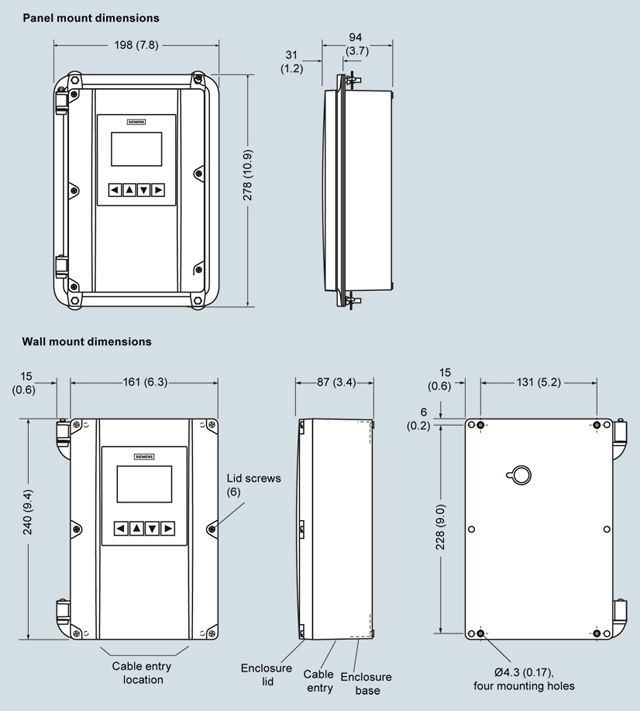

HydroRanger 200 HMI, dimensions in mm (inch)

Особенности


  • Easy to use HMI display with local four-button programming, menu-driven parameters, and Wizard support for key applications
  • English, German, French, Spanish, Chinese, Italian, Portuguese, and Russian texts on the HMI
  • Removable terminal blocks for ease of wiring
  • Monitors wet wells, weirs, and flumes
  • Digital communications with built-in Modbus RTU via RS 485
  • Compatible with SmartLinx system and SIMATIC PDM configuration software
  • Single or dual point level monitoring
  • 6 relays
  • Auto False-Echo Suppression for fixed obstruction avoidance
  • Anti-grease ring/tide mark build-up
  • Differential amplifier transceiver for common mode noise rejection and improved signal-to-noise ratio
  • Wall and panel mounting options

Схема подключения

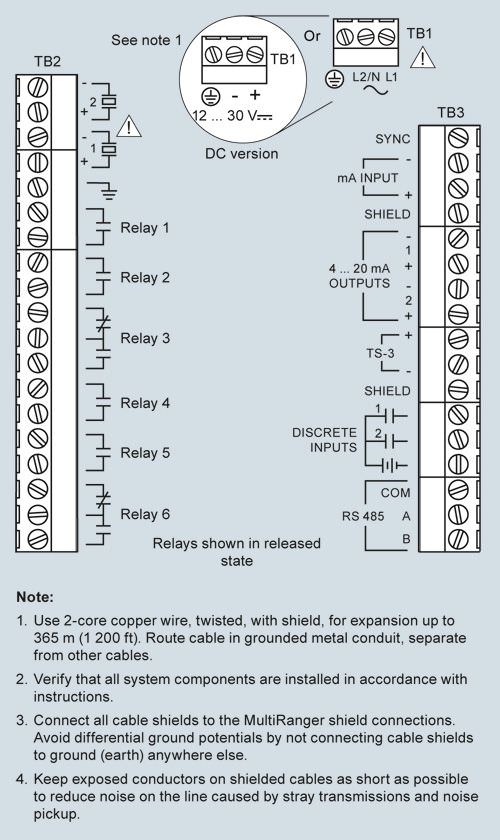

HydroRanger 200 HMI connections

Технические данные



Mode of Operation



Measuring principle

Ultrasonic level measurement

Measuring range

0.3 ... 15 m (1 ... 50 ft), transducer dependent

Measuring points

1 or 2

Input



Analog

0 ... 20 mA or 4 ... 20 mA, from alternate device, scalable (6 relay model)

Discrete

10 ... 50 V DC switching level Logical 0 ≤ 0.5 V DC Logical 1 = 10 ... 50 V DC Max. 3 mA

Output



EchoMax transducer

44 kHz

Ultrasonic transducer

Compatible transducers: ST-H and EchoMax series XPS-10, XPS-15/15F, and XRS-5

Relays1)

Rating 5 A at 250 V AC, non-inductive

  • Model with 6 relays

4 SPST Form A/2 SPDT Form

mA output

0 ... 20 mA or 4 ... 20 mA

  • Max. load

750 Ω, isolated

  • Resolution

0.1 % of range

Accuracy



Error in measurement

0.25 % of range or 6 mm (0.24 inch), whichever is greater

Resolution

0.1 % of measuring range or 2 mm (0.08 inch), whichever is greater2)

Temperature compensation

  • -50 ... +150 °C (-58 ... +302 °F)
  • Integral temperature sensor in transducer
  • External TS-3 temperature sensor (optional)
  • Programmable fixed temperature values

Rated operating conditions



Installation conditions


  • Location

Indoor / outdoor

  • Installation category

II

  • Pollution degree

4

Ambient conditions


  • Ambient temperature (enclosure)

-20 ... +50 °C (-4 ... +122 °F)

Design



Weight


  • Wall mount

1.22 kg (2.68 lb)

  • Panel mount

1.35 kg (2.97 lb)

Material (enclosure)

Polycarbonate

Degree of protection (enclosure)


  • Wall mount

IP65/Type 4X/NEMA 4X

  • Panel mount

IP54/Type 3/NEMA 3

Cable


  • Transducer and mA output signal

2-core copper conductor, twisted, shielded, 300 Vrms, 0.82 mm² (18 AWG), Belden 8 760 or equivalent is acceptable

  • Max. separation between transducer and transceiver

365 m (1 200 ft)

Displays and controls

60 x 40 mm (2.36 x 1.57 inch) LCD 240 x 160 pixels resolution

Power supply3)



AC version

100 ... 230 V AC ± 15 %, 50/60 Hz, 36 VA (17 W)

DC version

12 ... 30 V DC (20 W)

Certificates and approvals

  • CE, RCM4)
  • FM, CSAUS/C, UL listed
  • CSAUS/C Class I, Div. 2, Groups A, B, C and D, Class II, Div. 2, Groups F and G, Class III (wall mount only)
  • MCERTS Class 2 approved for Open Channel Flow

Communication

  • RS 232 with Modbus RTU or ASCII via RJ-11 connector
  • RS 485 with Modbus RTU or ASCII via terminal blocks
  • Optional: SmartLinx cards for
    • PROFIBUS DPV1
    • DeviceNet


1) All relays certified for use with equipment that fails in a state at or under the rated maximums of the relays.2) Program range is defined as the empty distance to the face of the transducer plus any range extension.3) Maximum power consumption is listed 4) EMC performance available upon request
