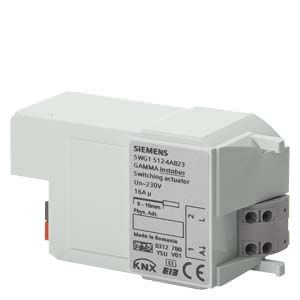

RL 512/23 - Switching Actuator, 1 x AC 230 V, 16 AX, C load Siemens

Обзор



.

Функции



RL 512/23

Switching Actuator, 1 x AC 230 V, 16 AX, C load

  • Rated contact voltage 230 V AC
  • Rated contact current 16 AX / 20 A
  • Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5...2.5 mm2
  • For mounting in AP 118 automation module box or AP 641 room control box

Технические данные



Размеры (Ш х В х Г)

86,5 x 47,8 x 36,2 мм



Дальнейшая информация



Дополнительная информация:
The AP 641 room control box and AP 118 automation module box must be ordered separately.
See chapter Modular Installation System - Room control box - Module boxes.
