RDE100..RF.. - Wireless room thermostat with auto timer Siemens

Обзор



Name

ID

Описание продукции

Напряжение питания

Рабочее напряжение

Дискретный выход, ток коммутируемой цепи

Дискретный выход, ток коммутируемой цепи

Релейные выходы

Размеры (Ш х В х Г)

RDE100.1RF

S55770-T320

Wireless room thermostat with auto timer

Micro (2xAAA)

DC 3 V







127 x 85 x 22 мм

RDE100.1RFS

S55770-T282

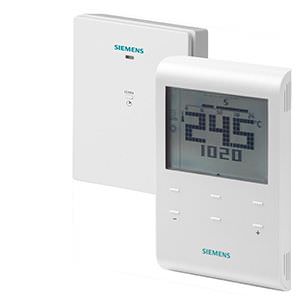

Wireless room thermostat with auto timer, incl. receiver

Micro (2xAAA)

DC 3 V for thermostat, AC 230 V for receiver

AC 24…230 V on receiver

8 (2) A

Change-over contact, potential-free on receiver

127 x 85 x 22 мм



Функции



RDE100..RF..

Wireless room thermostat with auto timer

Battery-powered DC 3 V thermostat, with time switch, optional external input

  • 2-position control with on / off output for heating
  • Operating modes: Comfort, Economy, Auto timer and Protection mode
  • Auto time switch
  • Adjustable commissioning and control parameters
  • Multifunction input for external floor sensor, keycard contact, etc.
  • Color of housing front: signal white RAL9003 (NCS S 0502-G)

Технические данные



Диапазон задания уставки

5..35 °C

Дифференциал переключения

1 K

Радиочастота

433 МГц

Класс защиты

IP30

Размеры (Ш х В х Г)

127 x 85 x 22 мм
