Line filters Siemens

Обзор

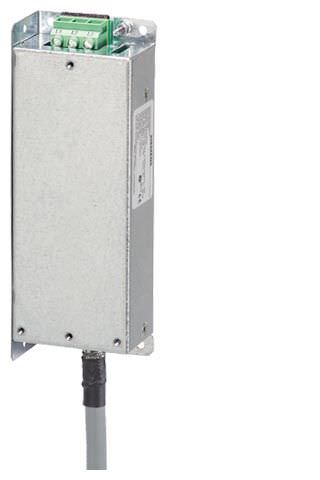

Line filter for Power Modules frame size FSA

With an additional line filter, the Power Module reaches a higher radio interference class.

Интеграция



Frame sizes FSA to FSF of the PM230 Power Module in degree of protection IP20 are available both with and without an integrated line filter class A.

Line filters that are optionally available depending on the Power Module used



Frame size



FSA

FSB

FSC

FSD

FSE

FSF

PM230 Power Module degree of protection IP55/UL Type 12

Available frame sizes

✓

✓

✓

✓

✓

✓

Line-side power components

Line filter class A

I

I

I

I

I

I

Line filter class B

I

I

I

I

I

I

PM230 Power Module degree of protection IP20

Available frame sizes

✓

✓

✓

✓

✓

✓

Line-side power components

Line filter class A

F

F

F

F

F

F

Line filter class B

U

U

U

S

S

S



U = Base component

S = Lateral mounting

I = Integrated

F = Power Modules available with and without integrated filter class A

– = Not possible

1) Lateral mounting is the only possible option for Push Through variants.

Технические данные



Line voltage 380 … 480 V 3 AC

Line filter class B



6SL3203-0BE17-7BA0

6SL3203-0BE21-8BA0

6SL3203-0BE23-8BA0

6SL3203-0BE27-5BA0

6SL3203-0BE31-1BA0

6SL3203-0BE31-8BA0

Rated current

A

11.4

23.5

49.4

72

105

204

Pulse frequency

kHz

4 ... 16

4 ... 16

4 ... 16

4 ... 16

4 ... 16

4 ... 8

Line supply connection

L1, L2, L3



Screw terminals

Screw terminals

Screw terminals

Screw terminals

Screw terminals

Screw terminals

  • Conductor cross-section

mm2

1 ... 2.5

2.5 ... 6

6 ... 16

16 ... 50

16 ... 50

35 ... 150

Load connection

U, V, W



Shielded cable

Shielded cable

Shielded cable

Shielded cable

Shielded cable

Shielded cable

  • Conductor cross-section

mm2

1.5

4

10

16

35

50

  • Length

m (ft)

0.45 (1.48)

0.5 (1.64)

0.54 (1.77)

1 (3.28)

1 (3.28)

1.1 (3.61)

PE connection



On housing with M5 screw stud

On housing with M5 screw stud

On housing with M6 screw stud

On housing with M6 screw stud

On housing with M8 screw stud

On housing with M10 screw stud

  • Conductor cross-section

mm2

1 ... 2.5

2.5 ... 6

6 ... 16

16 ... 50

35 ... 50

50 ... 150

Degree of protection



IP20

IP20

IP20

IP20

IP20

IP20

Dimensions




  • Width

mm (in)

73 (2.87)

100 (3.94)

140 (5.51)

100 (3.94)

110 (4.33)

150 (5.91)

  • Height

mm (in)

202 (7.95)

297 (11.69)

359 (14.13)

400 (15.75)

480 (18.90)

517 (20.35)

  • Depth

mm (in)

65 (2.56)

85 (3.35)

95 (3.74)

140 (5.51)

140 (5.51)

230 (9.06)

Possible as base component



Yes

Yes

Yes

No

No

No

Weight, approx.

kg (lb)

1.75 (3.86)

4 (8.82)

7.3 (16.1)

7.6 (16.8)

11.9 (26.2)

21.7 (47.8)

Suitable for
PM230 Power Module
Degree of protection IP20
Standard variant

Type

6SL3210-1NE11-3UL1
6SL3210-1NE11-7UL1
6SL3210-1NE12-2UL1
6SL3210-1NE13-1UL1
6SL3210-1NE14-1UL1
6SL3210-1NE15-8UL1
6SL3210-1NE17-7UL1

6SL3210-1NE21-0UL1
6SL3210-1NE21-3UL1
6SL3210-1NE21-8UL1

6SL3210-1NE22-6UL1
6SL3210-1NE23-2UL1
6SL3210-1NE23-8UL1

6SL3210-1NE24-5UL1
6SL3210-1NE26-0UL1

6SL3210-1NE27-5UL1
6SL3210-1NE28-8UL1

6SL3210-1NE31-1UL1
6SL3210-1NE31-5UL1

Suitable for
PM230 Power Module
Degree of protection IP20
Push-through variant (only lateral mouting)

Type

6SL3211-1NE17-7UL1

6SL3211-1NE21-8UL1

6SL3211-1NE23-8UL1

–

–

–

  • Frame size



FSA

FSB

FSC

FSD

FSE

FSF
