SINAMICS V70 servo drive Siemens

Обзор

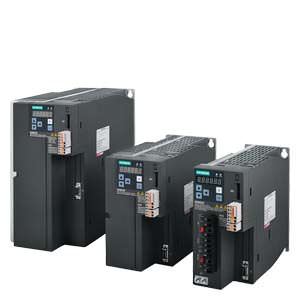

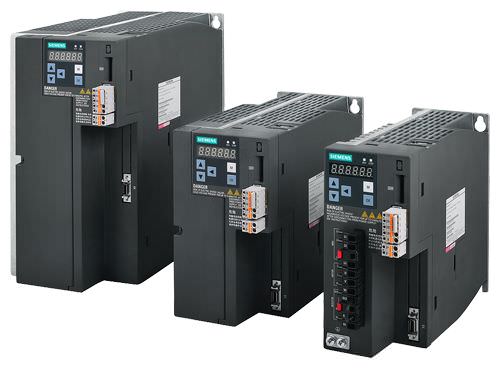

SINAMICS V70 FSA ... FSC

The SINAMICS V70 servo drive is specially designed to control the feed axes in standard machine tool applications. The system is designed essentially for applications where cost effectiveness is the primary consideration. The key performance data of the drive are aligned to perfectly fit to the solution provided by the SINUMERIK 808D ADVANCED.

Функции


  • 7 versions cover power range from 0.4 kW to 7 kW
  • Supply voltage 380 V to 480 V 3 AC
  • 300 % overload capability
  • Drive bus communication to the SINUMERIK 808D ADVANCED
  • Integrated motor brake switch
  • Safe Torque Off (STO)

Интеграция



The following components can be connected to the SINAMICS V70:

  • SINUMERIK 808D ADVANCED T PPU 161.2 horizontal
  • SINUMERIK 808D ADVANCED T PPU 160.2 vertical
  • SINUMERIK 808D ADVANCED M PPU 161.2 horizontal
  • SINUMERIK 808D ADVANCED M PPU 160.2 vertical
  • SIMOTICS S-1FL6 feed motor
  • Encoder in SIMOTICS S-1FL6 feed motor
  • Brake in SIMOTICS S-1FL6 feed motor

Чертеж



SINAMICS V70, frame size FSA

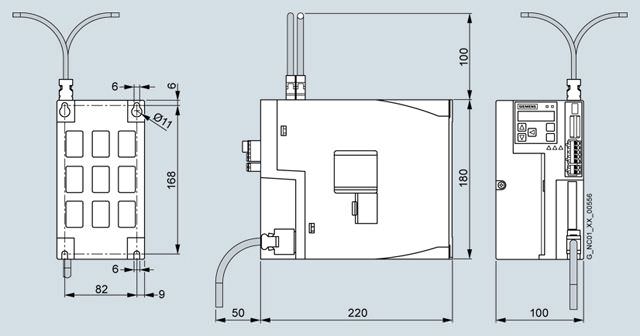

SINAMICS V70, frame size FSB

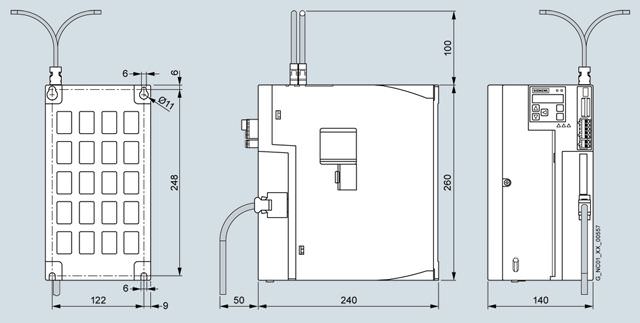

SINAMICS V70, frame size FSC

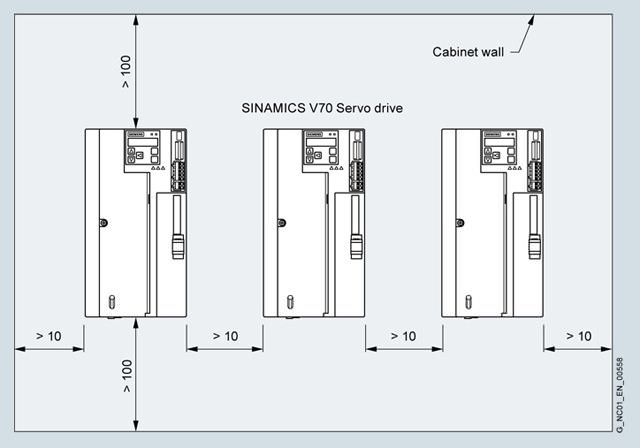

SINAMICS V70 – Mounting clearance

Особенности


  • Compact module with integrated infeed, inverter and closed-loop position control for one feed axis
  • Coated electronic modules
  • Commissioning on CNC directly
  • Faster commissioning thanks to pre-configured motor data stored in the drive
  • CE certified

Опции



With the following line filters, the SINAMICS V70 drives have been tested according to the emission requirements of the category of C2 environment. The conducted emissions and radiated emissions are in compliance with the standard of EN 55011 and reached Class A.

SINAMICS V70 servo drive

Line filter



SINAMICS V70



Rated current

Type 6SL3210-...

Frame size

Article No.




A

5DE12-4UA0

FSA

6SL3203-0BE15-0VA0

5

5DE13-5UA0

FSA

5DE16-0UA0

FSB

6SL3203-0BE21-2VA0

12

5DE17-8UA0

FSB

5DE21-0UA0

FSB

5DE21-4UA0

FSC

6SL3203-0BE22-0VA0

20

5DE21-8UA0

FSC



Технические данные



Product name

SINAMICS V70

6SL3210-...

5DE12-4UA0

5DE13-5UA0

5DE16-0UA0

5DE17-8UA0

5DE21-0UA0

5DE21-4UA0

5DE21-8UA0

Frame size

FSA

FSB

FSC

Input voltage

380 ... 480 V 3 AC -15 %/+10 %

Input frequency

50 ... 60 Hz ± 10 %

Infeed

Non-stabilized

Electronics power supply

24 V DC ± 10 %

24 V DC supply

2.0 A (4.0 A) combined with motors without brake (with brake)

Cooling

Natural cooling

Forced ventilation

Ambient temperature


  • Storage/transport

-40  ... +70 °C

  • Operation

0  ... 45 °C without derating,
> 45 ... 55  °C with derating (derating by 0 % at 45 °C up to 20 % at 55 °C)

Air humidity



  • Storage/transport

90 % (non-condensing)

  • Operation

< 90 % (non-condensing)

Ambient conditions

Indoor (without sunshine), without corrosive gas, combustible gas, oil gas, nor dust

Installation altitude

Up to 1000 m without derating

Connectable motors

SIMOTICS S-1FL6

Degree of protection

IP20

Encoder evaluation

Absolute encoder 20 bit/Incremental encoder with 2500 S/R (13 bit resolution through electronic multiplication)

Output current


  • Rated current Irated

1.2 A

3.0 A

4.6 A

5.3 A

7.8 A

11.0 A

13.2 A

  • Peak current Imax

3.6 A

9.0 A

13.8 A

15.9 A

23.4 A

33.0 A

39.6 A

Rated output power Prated

0.4 kW

1 kW

1.5 kW

1.75 kW

2.5 kW

3.5 kW

7 kW

Power loss

36 W

47 W

54 W

70 W

47 W

54 W

70 W

Cooling air required

0.005 m3/s

0.005 m3/s

0.005 m3/s

0.005 m3/s

0.005 m3/s

0.005 m3/s

0.005 m3/s

Conductor cross-section, max.

1.5 mm2

2.5 mm2

Dimensions1)


  • Width

80 mm

100 mm

140 mm

  • Height

180 mm

180 mm

260 mm

  • Depth

200 mm

200 mm

240 mm

Weight, approx.

1.85 kg

2.45 kg

5.65 kg

Certification

CE



S/R = Signals/Revolution

1) Minimum distance between drive modules: 10 mm.
