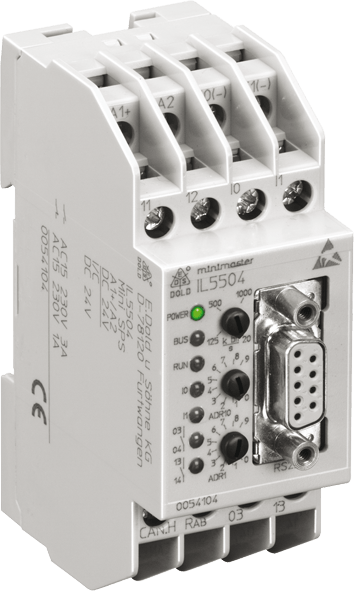

Артикул: 1325203
• According to IEC/EN 61 131-2, EN 50 178
• Operation as master
- Operation as slave
- Transfer rate up to 1 Mb/s
- Interface according to DS301 version 3.0
• IN 5504 locally extendable with digital and analoge in- / output
modules
• 2 digital inputs for DC 24 V
• 2 relay outputs
• LED indicators
• Standard programming software CODESYS® under Windows
according to IEC/EN 61131-3:
- Instruction set
- Ladder diagram
- Function block diagram
- Sequential function chart
- Structured text (similar to Pascal)
• 128 KB Flash memory for user program
• 128 KB RAM for user data
• 16 KB battery buffered RAM for no-voltage safe data
• Battery buffered real time clock
• Monitoring contact for RUN status of the PLC
• IL 5504: 35 mm width
IN 5504: 52.5 mm width
• Operation as master
- Operation as slave
- Transfer rate up to 1 Mb/s
- Interface according to DS301 version 3.0
• IN 5504 locally extendable with digital and analoge in- / output
modules
• 2 digital inputs for DC 24 V
• 2 relay outputs
• LED indicators
• Standard programming software CODESYS® under Windows
according to IEC/EN 61131-3:
- Instruction set
- Ladder diagram
- Function block diagram
- Sequential function chart
- Structured text (similar to Pascal)
• 128 KB Flash memory for user program
• 128 KB RAM for user data
• 16 KB battery buffered RAM for no-voltage safe data
• Battery buffered real time clock
• Monitoring contact for RUN status of the PLC
• IL 5504: 35 mm width
IN 5504: 52.5 mm width
Артикул: 1325202
• According to IEC/EN 61 131-2, EN 50 178
• Operation as master
- Operation as slave
- Transfer rate up to 1 Mb/s
- Interface according to DS301 version 3.0
• IN 5504 locally extendable with digital and analoge in- / output
modules
• 2 digital inputs for DC 24 V
• 2 relay outputs
• LED indicators
• Standard programming software CODESYS® under Windows
according to IEC/EN 61131-3:
- Instruction set
- Ladder diagram
- Function block diagram
- Sequential function chart
- Structured text (similar to Pascal)
• 128 KB Flash memory for user program
• 128 KB RAM for user data
• 16 KB battery buffered RAM for no-voltage safe data
• Battery buffered real time clock
• Monitoring contact for RUN status of the PLC
• IL 5504: 35 mm width
IN 5504: 52.5 mm width
• Operation as master
- Operation as slave
- Transfer rate up to 1 Mb/s
- Interface according to DS301 version 3.0
• IN 5504 locally extendable with digital and analoge in- / output
modules
• 2 digital inputs for DC 24 V
• 2 relay outputs
• LED indicators
• Standard programming software CODESYS® under Windows
according to IEC/EN 61131-3:
- Instruction set
- Ladder diagram
- Function block diagram
- Sequential function chart
- Structured text (similar to Pascal)
• 128 KB Flash memory for user program
• 128 KB RAM for user data
• 16 KB battery buffered RAM for no-voltage safe data
• Battery buffered real time clock
• Monitoring contact for RUN status of the PLC
• IL 5504: 35 mm width
IN 5504: 52.5 mm width
Flexible applications for safety and automation simply realised
The increasing complexity of control technology in machines and systems as well as strong trend towards decentralisation result in an increased communication need between control technology and peripheral equipment in machine and system control. The field bus-capable SPS from DOLD is available with a comprehensive palette of field bus-capable input and output modules with which flexibly applications for safety and automation can be simply realised. The input and output modules (I/O modules) represent peripheral components of an SPS in the bus system. Both analogue and digital DOLD bus modules are available for the field bus system CANopen.
