SCALANCE X-100 Switches Siemens

Обзор

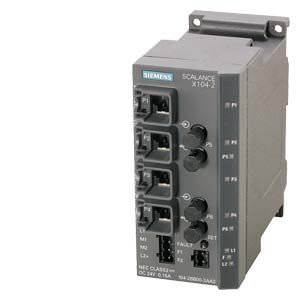

SCALANCE X104-2

The SCALANCE X-100 Industrial Ethernet switches can be used to set up low-cost line or star topologies with switching functionality.

Special features

  • Rugged compact enclosure (S7‑300 format)
  • LED diagnostics (power, port status, data traffic)
  • Signaling contact can be configured locally using SET button
  • Local display (SET button)
  • Redundant power supply (2 x 24 V DC)
  • Electrical ports with auto-crossover function

Product range for SIMATIC PCS 7

SCALANCE X104-2

  • 4 x 10/100 Mbps RJ45 ports, electrical
  • 2 x 100 Mbps BFOC ports, optical (multi-mode, glass), up to 5 km

Дизайн



The rugged metal housing is designed for space-saving installation on a standard DIN rail or an S7-300 mounting rail in control cabinets. Direct wall mounting in various positions is also possible.

Boundary conditions for network configuration

  • Length of the TP cable between two switches
    • Max. 100 m with Industrial Ethernet FastConnect products
  • Length of the optical cables max. 5 km with Industrial Ethernet multi-mode FO cables

Дальнейшая информация



For detailed information and technical specifications on Industrial Ethernet switches and accessories (for example, cable material and connectors), as well as information about tools and materials for assembly, see Catalog IK PI.

Selection tools

The following tools will support you during the selection and configuration of Industrial Ethernet switches:

SIMATIC NET Selection Tool

TIA Selection Tool

http://www.siemens.com/tia-selection-tool
