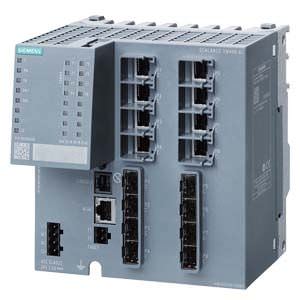

SCALANCE XM408-8C Industrial Ethernet switch

The switches of the SCALANCE XM‑400 product line allow for the flexible design of electrical or optical Industrial Ethernet networks with high availability. They are ideally suited for configuring the plant bus and the terminal bus of the SIMATIC PCS 7 process control system in electrical or optical Gigabit ring technology (non-redundant and redundant rings). Network topology, type and number of ports can be adapted easily to the structure of the plant.

In the long-term, the SCALANCE XM‑400 switches will supersede the switches of the SCALANCE X‑400 range, SCALANCE X414‑3E and X408‑2.

Product range for SIMATIC PCS 7

  • Basic devices with integrated Gigabit Ethernet twisted pair interfaces (10/100/1000 Mbit/s)
    • XM416‑4C with 16 ports (of which 4 are combo ports)
    • XM408‑8C with 8 combo ports
    • XM408‑4C with 8 ports (of which 4 are combo ports)
  • Port extender for flexible expansion of the basic device up to 24 ports (8 RJ45 ports, 8 RJ45 ports with Power over Ethernet or 8 slots for SFP plug-in transceiver)

Note:

A combo port consists of an electric port and a slot for a plug-in transceiver. Only one of the two can be active at any one time. Inserting a plug-in transceiver results in disabling of the electric port.

Special features

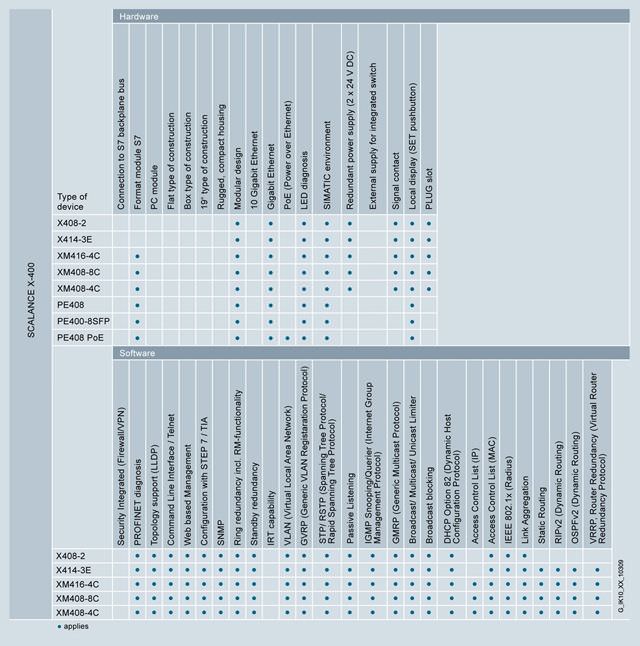

SCALANCE X-400 and XM‑400 features

Дизайн

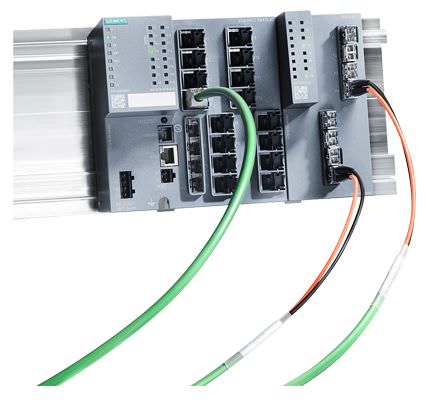

SCALANCE XM416-4C with PE400-8SFP port extender

The modular SCALANCE XM‑400 Industrial Ethernet switches consist of various basic devices (8 or 16 ports) which can be expanded by port extenders and plug-in transceivers up to 24 ports (10/100/1000 Mbit/s). Depending on the configuration, they support both electrical and optical transmission media. The rugged, industry-compatible enclosure with IP20 protection is suitable for mounting on rails.

XM-400 basic devices

  • XM416‑4C with a total of 16 ports, of which
    • 12 × 10/100/1000 Mbit/s RJ45 ports with retaining collar
    • 4 combo ports (4 × 10/100/1000 Mbit/s RJ45 ports with retaining collar and 4 SFP slots 100 or 1000 Mbit/s for alternative use)
    • 1 port extender with 8 ports can be connected

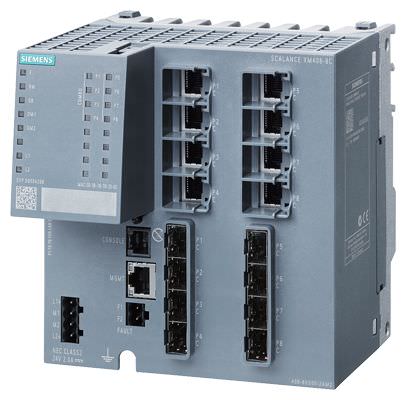

  • XM408-8C with a total of 8 ports, of which
    • 8 combo ports (8 × 10/100/1000 Mbit/s RJ45 ports with retaining collar and 8 SFP slots 100 or 1000 Mbit/s for alternative use)
    • 2 port extenders with 8 ports each can be connected
  • XM408‑4C with a total of 8 ports, of which
    • 4 × 10/100/1000 Mbit/s RJ45 ports with retaining collar
    • 4 combo ports (4 × 10/100/1000 Mbit/s RJ45 ports with retaining collar and 4 slots for ST plug-in transceiver 100 Mbit/s or SC plug-in transceiver 1000 Mbit/s for alternative use)
    • 2 port extenders with 8 ports each can be connected

All SCALANCE XM‑400 basic devices are additionally equipped with:

  • Console port (serial interface RJ11) and management port (100 Mbit/s, RJ45) for on-site parameterization/diagnostics and firmware update
  • Slot for C‑PLUG swap medium for simple device exchange (included in scope of delivery) or KEY‑PLUG XM‑400 (optional) for additional activation of Layer 3 functions
  • Freely-configurable, floating signal outputs
  • LEDs and selector for display of mode and status information
  • Grounding bolts for defined ground connection
  • Two power supplies for protection against power failure
  • Connection for a port extender on the right (tool-free installation)

XM‑400 port extender

  • PE408 with 8 × 10/100/1000 Mbit/s RJ45 ports with retaining collar
  • PE400-8SFP with 8 SFP slots 100 or 1000 Mbit/s
  • PE408PoE with 8 × 10/100/1000 Mbit/s RJ45 ports, Power over Ethernet (PoE) according to IEEE 802.3at Type 2, and retaining collar; separate power supply required

SFP plug-in transceiver

The following SFP (Small Form-Factor Pluggable) transceivers can be used in the SFP slots:

  • Optical SFP plug-in transceivers with 1 × 100 Mbit/s LC port
    • SFP991-1, multi-mode, glass, up to 5 km
    • SFP991-1LD, single-mode, glass, up to 26 km
    • SFP991-1LH+, single-mode, glass, up to 70 km
    • SFP991-1ELH200, single-mode, glass, up to 200 km
  • Optical SFP plug-in transceivers with 1 × 1 Gbit/s LC port
    • SFP992-1, multi-mode, glass, up to 750 m
    • SFP992-1LD, single-mode, glass, up to 10 km
    • SFP992-1LH, single-mode, glass, up to 40 km
    • SFP992-1LH+, single-mode, glass, up to 70 km
    • SFP992-1ELH, single-mode, glass, up to 120 km

Plug-in transceiver for XM408‑4C basic device

  • ST plug-in transceiver, ST/BFOC connection, 100 Mbit/s
    • STP991-1, multi-mode FOC, up to 5 km
    • STP991-1LD, single-mode FOC, up to 26 km
  • SC plug-in transceiver, SC connection, 1 Gbit/s
    • STP992-1, multi-mode FOC, up to 750 m
    • STP992-1LD, single-mode FOC, up to 10 km

Boundary conditions for network configuration with SCALANCE XM‑400

  • Maximum line length between 2 modules for multimode fiber-optic conductors:
    • 5 000 m at 100 Mbit/s
    • 750 m at 1 Gbit/s
  • Maximum line length between 2 modules for single-mode fiber-optic conductors:
    • 200 km at 100 Mbit/s
    • 120 km at 1 Gbit/s
  • Maximum length of installation cable:
    • 100 m at 100 Mbit/s with IE FC TP Cable 2 × 2 and IE FC Plug 180
    • Max. 90 m at 1 Gbit/s with IE FC TP cable 4 × 2, IE FC RJ45 modular outlet and patch cable (10 m)
    • 100 m at 1 Gbit/s with IE FC TP Cable 4 × 2 and IE FC Plug 4 × 2
