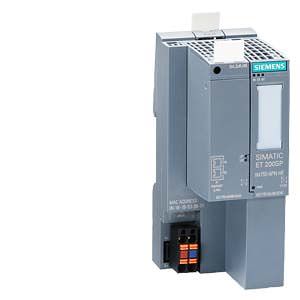

IM 155-6PN High Feature interface module, with reference ID label

IM 155‑6PN HF (High Feature) interface module

  • Interface module for linking the ET 200SP station to PROFINET IO
  • 24 V DC supply for interface module and backplane bus
  • Integrated 2-port switch for line configuration
  • Handling of complete data transfer with the controller
  • Data exchange with the I/O modules via the backplane bus
  • Support of identification data I&M0 to I&M4
  • Delivery including server module
  • BusAdapter with integrated 2-port switch for individual selection of the PROFINET IO connection system can be ordered separately

BusAdapter BA 2×RJ45

BusAdapter (BA)

A BusAdapter can be used to adapt the universal PROFINET IO interface of the interface module to the specific requirements of the environment of use. If a connection socket is faulty or when changing the connection system at a later stage, it is only necessary to replace the BusAdapter.

The following bus adapters are available:

  • BA 2×RJ45
    With two sockets for commercially available RJ45 plugs; suitable for standard applications with moderate mechanical strength and EMI resistance
  • BA 2×FC
    With two FastConnect terminals for direct connection of the bus cables; suitable for applications with higher mechanical strength and/or EMI resistance (5x higher resistance against vibrations and EMI)
  • BA 2×SCRJ
    With two optical PROFINET interfaces for connection of optical-fiber cables via SC RJ connectors (5x higher resistance against vibrations and EMI; PROFINET cable lengths between two stations up to 300 m)
  • BA SCRJ/RJ45
    With two PROFINET interfaces:
    • 1 × optical, for connection of fiber-optic cables via SC RJ connectors (port 1)
    • 1 × electric, for connection of bus cable with standard RJ45 connectors (port 2)
  • BA SCRJ/FC
    With two PROFINET interfaces (5x higher resistance against vibrations and EMI):
    • 1 × optical, for connection of fiber-optic cables via SC RJ connectors (port 1)
    • 1 × electric, for direct placement of the FastConnect bus cable (port 2)

Дизайн



The IM 155-6PN High Feature interface module is snapped directly onto the standard mounting rail.

Device features:

  • Diagnostics displays for errors (ERROR), Maintenance (MAINT), operation (RUN) and power supply (PWR) as well as one link LED per port
  • Optional inscription with labeling strips (light gray), available as:
    • Roll for thermal transfer continuous feed printer with 500 strips each
    • Paper sheets for laser printer, A4 format, with 100 strips each
  • Optional equipping with a reference ID label

The selected bus adapter is simply plugged onto the interface module and secured with a screw. It can be equipped with a reference ID label.
