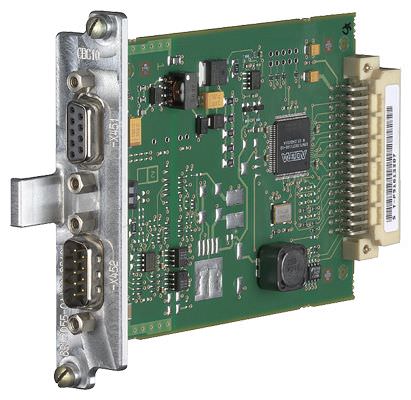

CBC10 Communication Board

The CBC10 Communication Board is used to interface the CU320‑2 Control Unit (and therefore the drive system) to the CAN (Controller Area Network) protocol. The board''s driver software fulfils the standards of the following CANopen specification of the CiA organization (CAN in Automation):

• Communication profiles in accordance with DS 301
• Drive profile in accordance with DSP 402
  (in this case Profile Velocity Mode)
• EDS (Electronic Data Sheet)
  in accordance with DSP 306
• Operational status signaling in accordance with DSP 305

Note:

The CAN address is set on the CU320‑2 DP Control Unit by means of the two address switches.
These address switches are not available on the CU320‑2 PN Control Unit. In this case, the address can be set by means of parameters.

Интеграция

The CBC10 Communication Board plugs into the option slot on the CU320‑2 Control Unit. Two SUB‑D connections for input and output are provided for the CAN interface on the CBC10 Communication Board.
