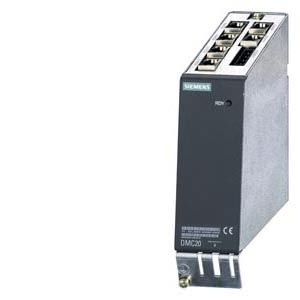

DMC20 DRIVE-CLiQ Hub Module Siemens

Обзор

The DMC20 DRIVE-CLiQ Hub Module is used to implement a star-shaped configuration of a DRIVE-CLiQ line. Two DMC20 DRIVE-CLiQ Hub Modules can be connected in series (cascaded).

Дизайн

The DMC20 DRIVE-CLiQ Hub Module in degree of protection IP20 is suitable for installation in control cabinets.

The following are located on the DMC20 DRIVE-CLiQ Hub Module:

• 6 DRIVE-CLiQ sockets for connecting 5 DRIVE-CLiQ devices
• 1 connection for the electronics power supply via the 24 V DC supply connector

The status of the DMC20 DRIVE-CLiQ Hub Module is indicated via a multi-color LED.

Интеграция

Signals from more than one encoder can be collected with the DRIVE-CLiQ Hub Module and forwarded to the Control Unit through a single DRIVE-CLiQ cable.

With a DRIVE-CLiQ Hub Module, individual DRIVE-CLiQ nodes can be removed without interrupting the data exchange with the remaining devices in the DRIVE-CLiQ line.

Технические данные
