Factory mounting of valve manifolds on SITRANS P410 transmitters Siemens
Обзор
Factory-mounting of valve manifolds on SITRANS P410 gauge and differential pressure transmitters.
Factory-mounting of valve manifolds is possible for SITRANS P410. Depending on the available P410 versions, you can find the configuration options under SITRANS P DS III.
Дизайн
The 7MF9011-4EA valve manifolds are sealed with gaskets made of PTFE between transmitter and the valve manifold as standard. Soft iron, stainless steel and copper gaskets are also available for sealing purposes if preferred.
The 7MF9011-4FA valve manifolds are sealed with PTFE sealing tape between the transmitter and the valve manifold.
The 7MF9411-5BA and 7MF9411-5CA valve manifolds are sealed with PTFE sealing rings between the transmitter and the valve manifold.
Once installed, the complete unit is checked under pressure for leaks (compressed air 6 bar (87 psi))and is certified leak-proof with a factory certificate to EN 10204 - 2.2.
All valve manifolds should preferably be secured with the respective mounting brackets. The transmitters are mounted on the valve manifold and not on the unit itself.
If you order a mounting bracket when choosing the option "Factory mounting of valve manifolds", you will receive a mounting bracket for the valve manifold instead of a bracket for mounting the transmitter.
If you order an acceptance test certificate 3.1 to EN10204 when choosing the option "Factory mounting of valve manifolds", a separate certificate is provided for the transmitters and the valve manifolds respectively.
Конфигурация
7MF9011-5AA valve manifold for relative and absolute pressure transmitters | ||
|---|---|---|
 | Add -Z to the Article No. of the transmitter and add order codes | Order Code |
SITRANS P DS III With process connection oval flange with PTFE gasket and steel mounting screws. Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2 | T05 | |
Additional versions: | ||
Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter) | A02 | |
Acceptance test certificate according to EN 10204-3.1 for transmitters and mounted valve manifold | C12 | |
With manufacturer declaration according to NACE, MR-0175 | D07 | |
7MF9011-5AA valve manifold for relative and absolute pressure transmitters | ||
| | Add -Z to the Article No. of the transmitter and add order codes | Order Code |
SITRANS P DS III With process connection oval flange with PTFE gasket and stainless steel mounting screws. Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2 | T06 | |
Additional versions: | ||
Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter) | A02 | |
Acceptance test certificate according to EN 10204-3.1 for transmitters and mounted valve manifold | C12 | |
With manufacturer declaration according to NACE, MR-0175 | D07 | |
7MF9011-4FA valve manifold for relative and absolute pressure transmitters | ||
 | Add -Z to the Article No. of the transmitter and add order codes | Order Code |
SITRANS P DS III With process connection Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2 | T03 | |
Additional versions: | ||
Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter) | A02 | |
Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold | C12 | |
With manufacturer declaration according to NACE, MR-0175 | D07 | |
7MF9011-4EA valve manifold for relative and absolute pressure transmitters | ||
 | Add -Z to the Article No. of the transmitter and add order codes | Order Code |
SITRANS P DS III | T02 | |
With process connection | ||
Alternative sealing material: | ||
| A70 | |
| A71 | |
| A72 | |
Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2 | ||
Additional versions: | ||
Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter) | A02 | |
Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold | C12 | |
With manufacturer declaration according to NACE, MR-0175 | D07 | |
7MF9411-5BA valve manifold for absolute and differential pressure transmitters | ||
 | Add -Z to the Article No. of the transmitter and add order codes | Order code |
SITRANS P DSIII 7MF433.-…, 7MF443.-… and 7MF453.-… 1) | ||
Mounted with PTFE gaskets and screws made of | ||
| U01 | |
| U02 | |
Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2 | ||
Additional versions: | ||
Delivery with mounting bracket and mounting clips made of | ||
| A01 | |
| A02 | |
(instead of the mounting bracket supplied with the transmitter) | ||
Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold | C12 | |
With manufacturer declaration according to NACE, MR-0175 | D07 | |
7MF9411-5CA valve manifold for differential pressure transmitters | ||
 | Add -Z to the Article No. of the transmitter and add order codes | Order code |
SITRANS P DSIII 7MF443.-... and 7MF453.-…1 1) | ||
Mounted with PTFE gaskets and screws made of | ||
| U03 | |
| U04 | |
Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2 | ||
Additional versions: | ||
Delivery with mounting bracket and mounting clips made of | ||
| A01 | |
| A02 | |
(instead of the mounting bracket supplied with the transmitter) | ||
Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold | C12 | |
With manufacturer declaration according to NACE, MR-0175 | D07 | |
1) For 7MF453.-... transmitters, you require a 7/10-20 UNF connection thread in the process flange
Чертеж
Valve manifolds mounted on SITRANS P DS III

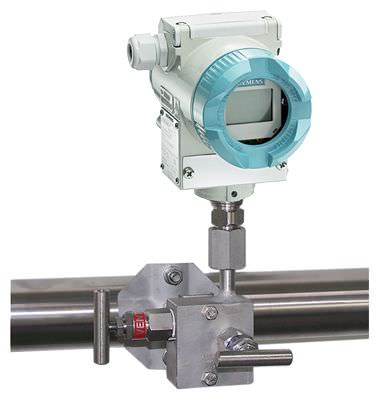

7MF9011-4EA valve manifold with mounted gauge pressure and absolute pressure transmitters
7MF9011-4EA valve manifold with mounted gauge pressure and absolute pressure transmitters, measurements in mm (Inch)

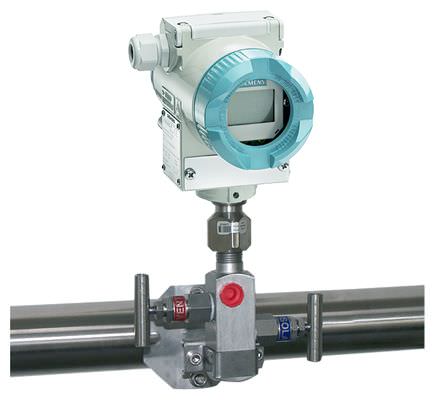

7MF9011-4FA valve manifold with mounted gauge pressure and absolute pressure transmitters
7MF9011-4FA valve manifold with mounted gauge pressure and absolute pressure transmitters, measurements in mm (Inch)

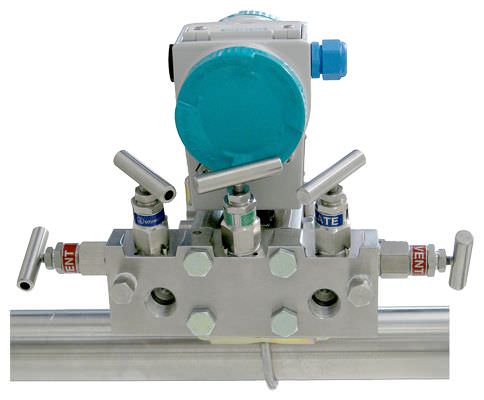

7MF9411-5BA valve manifold with mounted differential pressure transmitter
7MF9411-5BA valve manifold with mounted differential pressure transmitter, measurements in mm (Inch)

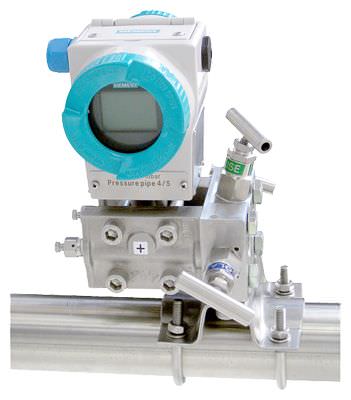

7MF9411-5CA valve manifold with mounted differential pressure transmitter
7MF9411-5CA valve manifold with mounted differential pressure transmitter, measurements in mm (Inch)
