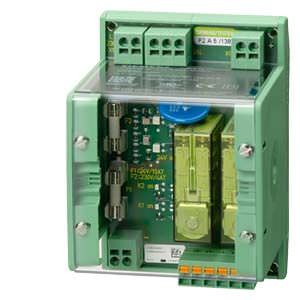

Safe Brake Adapter SBA Siemens

Обзор



For SINAMICS S120, S150, G130 and G150 units, a Safe Brake Adapter SBA is required to safely control a motor holding brake via the Safe Brake Control (SBC) safety function according to IEC 61800-5-2.

The Safe Brake Adapter is available for 24 V DC and 230 V AC brake control voltages.

It can be ordered as supplementary component for SINAMICS S120 Chassis Format Units as well as for SINAMICS G130 Chassis Units.

It is available as option (K88, K89) for SINAMICS S120 Cabinet Modules and SINAMICS S150 or G150 Cabinet Units.

Note: The SBA approval is currently only valid for IEC regions (still open for UL regions).

Интеграция



The SBC function is controlled and monitored by the SINAMICS Drives firmware. The control and feedback signal regarding the switching state of the SBA relay is realized via terminals of the Control Interface Module (CIM). The excitation coil of the holding brake is connected directly at the SBA.

For SINAMICS G130 chassis units and SINAMICS S120 Chassis Format Units, the brake supply voltage must be connected externally at the SBA.

Connection example of a Safe Brake Adapter SBA

Технические данные



Safe Brake Adapter

6SL3355-2DX00-1AA0

6SL3355-2DX01-1AA0

Electronics power supply



Supply voltage
(via the Control Interface Module)

24 V DC
(20.4 ... 28.8 V)

24 V DC
(20.4 ... 28.8 V)

Supply voltage of the motor holding brake

230 V AC

24 V DC

Max. permissible current consumption of the


  • Motor holding brake

2 A

5 A

  • Fast de-energization

2 A

–

Max. permissible cable lengths


  • to the Control Interface Module

10 m

10 m

  • to the brake

300 m

30 m

Max. conductor crosssection

2.5 mm2

2.5 mm2

Dimensions


  • Width

75 mm

75 mm

  • Height

111 mm

111 mm

  • Depth

89 mm

89 mm

Weight, approx.

0.25 kg

0.25 kg

Safety integrated

Safety Integrity Level 2 (SIL2) acc. to IEC 61508, Performance Level d (PLd) acc. to ISO 13849-1 and Control Category 3 acc. to EN ISO 13849-1 (previously EN 954-1)
