Signal cables Siemens

Область применения

DRIVE-CLiQ cables

are used to connect components with DRIVE-CLiQ connections which have a separate or external 24 V DC power supply.

DRIVE-CLiQ cables for connecting Line/Motor Modules with a Control Unit are part of the scope of supply of the relevant modules.

MOTION-CONNECT DRIVE-CLiQ cables

are used whenever components with DRIVE-CLiQ connections must meet high requirements such as mechanical stress and oil resistance, e.g. when connections are made outside the cabinet between

• Motor Modules and Sensor Modules
• Motor Modules and motors with DRIVE-CLiQ interface

MOTION-CONNECT DRIVE-CLiQ cables have 24 V DC cores.

MOTION-CONNECT pre-assembled cables

are used whenever motor encoders on motors without DRIVECLiQ interface are connected to Sensor Modules.

Note: All 6FX.002-2C... signal cables are also available with crimped contacts and connector housing supplied as a separate accessory.

• Signal cables with enclosed connector enclosure for the motor end. In this case, the 6th position of the Order No. must be changed from 0 to 4:
  6FX.042-2C...-....
• Signal cables with enclosed connector enclosure for the module end. In this case, the 6th position of the Order No. must be changed from 0 to 1:
  6FX.012-2C...-....

Обзор

MOTION-CONNECT DRIVE-CLiQ cable

Signal cables are pre-assembled and are sold by the meter for the connection of a variety of components.

• DRIVE-CLiQ cables
• MOTION-CONNECT DRIVE-CLiQ cables
• MOTION-CONNECT pre-assembled cables

Интеграция

Connection overview for the CU320-2 Control Unit

Connection overview for Line Modules and Motor Modules

The DRIVE-CLiQ type 6SL3060-4A..0-0AA0 cables for the standard configuration are part of the scope of supply of the Line Modules and Motor Modules. In this case, the modules must be mounted directly adjacent in a line.

Connection overview for Line Modules and Motor Modules

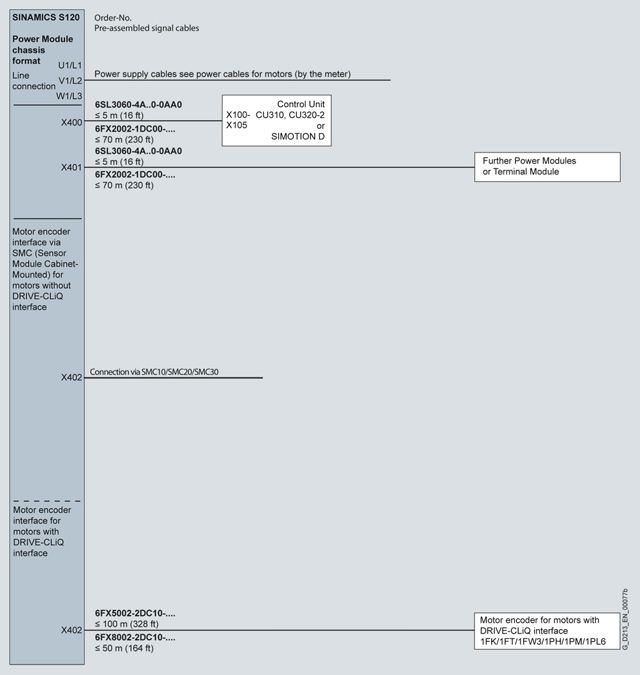

Connection overview for Power Modules

A DRIVE-CLiQ cable of type 6SL3060-4A..0-0AA0 for connection to the chassis-mounted CU310 Control Unit is already included in the scope of supply.

Connection overview for Power Modules

Connection of a machine encoder (direct measuring system)
