SITRANS LU150 Siemens

Область применения

The transducer is available in PVDF copolymer, making the device suitable for use in a wide variety of applications.

SITRANS LU150 is easy to install and maintain, and can be quickly removed for cleaning as required by the food, beverage and pharmaceutical industries.

The reliability of the level data is based on the Sonic Intelligence echo processing algorithms. A filter discriminates between the true echo and false echoes from acoustic or electrical noises and agitator blades in motion. The ultrasonic pulse propagation time to the material and back is temperature-compensated and converted into distance for display, analog output.

• Key Applications: chemical storage vessels, filter beds, mud pits, liquid storage vessels, food applications

Обзор

SITRANS LU150 is a short-range integrated ultrasonic level transmitter. This general purpose, 2 wire, 4 to 20 mA loop powered transmitter is ideal for liquids, slurries, and bulk materials in open or closed vessels to 5 m (16.4 ft).

Конфигурация

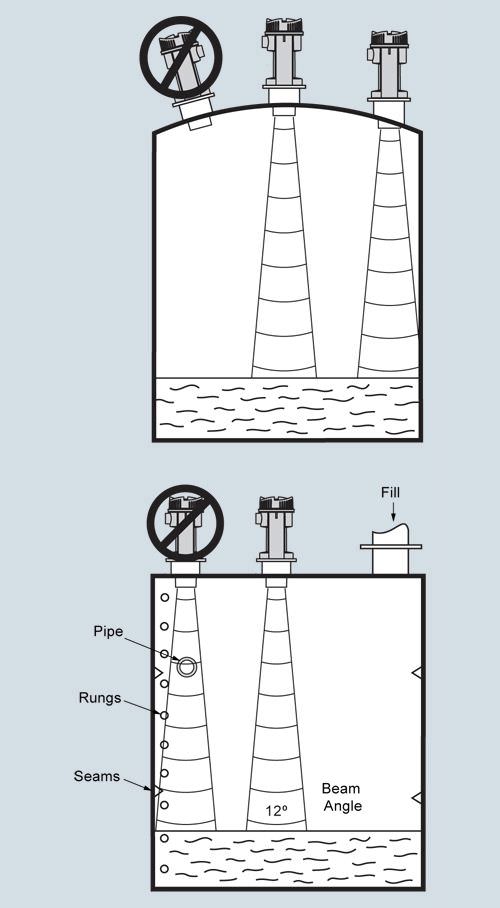

SITRANS LU150, mounting

Чертеж

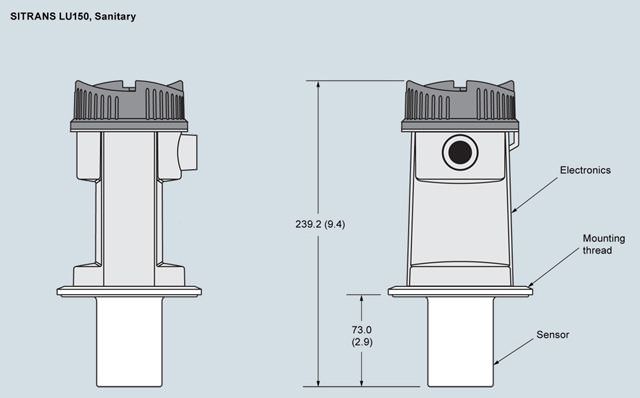

SITRANS LU150, dimensions in mm (inch)

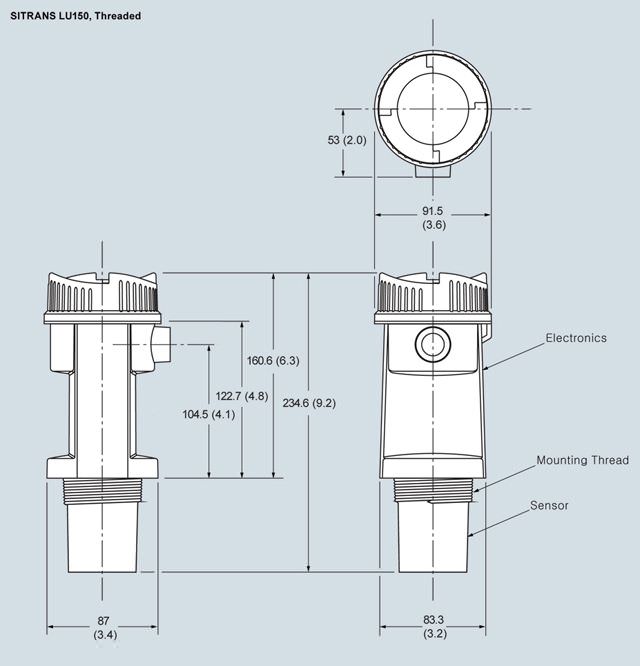

SITRANS LU150, dimensions in mm (inch)

Особенности

• Easy to install, program, and maintain
• Accurate and reliable
• Sanitary models available
• Patented Sonic Intelligence echo processing
• Integral temperature compensation

Опции

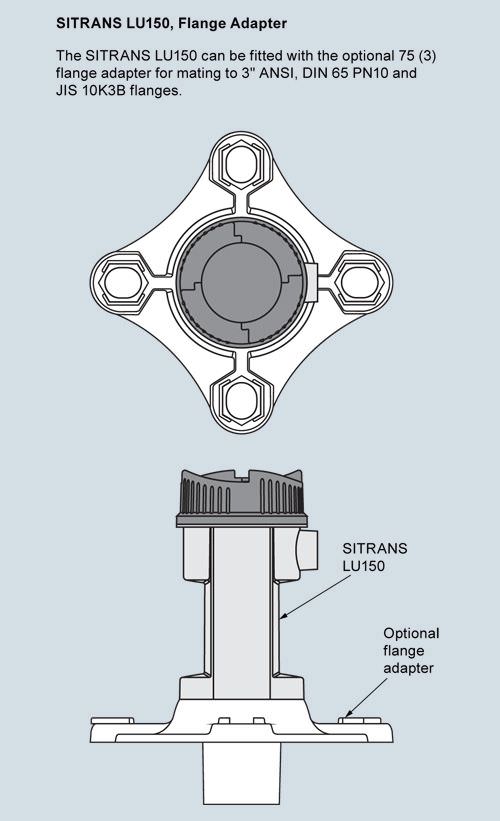

SITRANS LU150 Optional Flange Adapter, dimensions in mm (inch)

Схема подключения

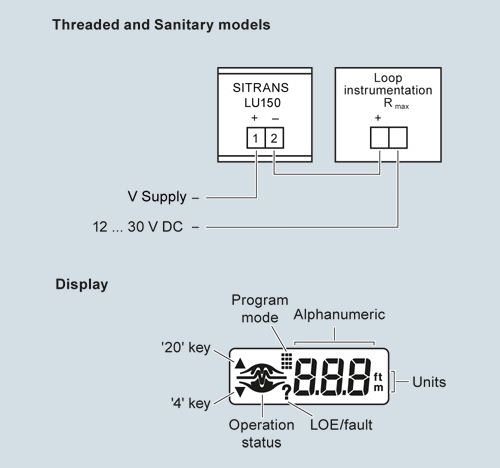

SITRANS LU150 connections

Технические данные
