Racks Siemens

Обзор

The rack is the mechanical framework of the SIPLUS HCS716I and contains all the modules required to control the power outputs.

It is available in four different versions:

• Rack hinged frame
• Rack mounting frame
• Rack mounting frame without flange
• Rack mounting frame, slim-line version and expansion frame, slim-line version

Rack hinged frame

The CPU and the control module are located at the rear of the rack. The rack is suitable for installation in a hinged frame.

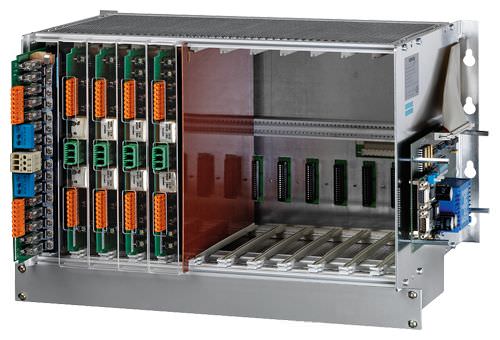

Rack hinged frame 6BK1700‑2AA00‑0AA1

Rack mounting frame

The CPU and the control module are located on the right side of the rack. This rack is suitable for direct installation in a control cabinet.

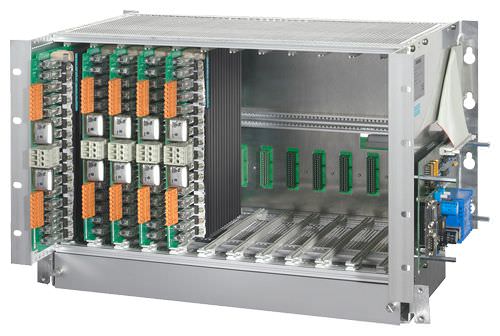

Rack mounting frame 6BK1700‑2AA10‑0AA1

Rack mounting frame without flange

The CPU and the control module are also located on the right side of the rack. This rack is suitable for installation in a control cabinet. In contrast to the rack mounting frame, this version has no mounting bracket (flange) on the front.

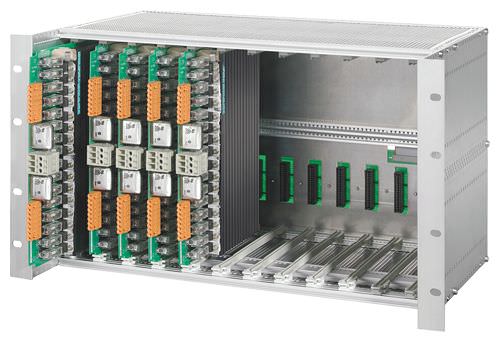

Rack mounting frame without flange 6BK1700‑2AA70‑0AA0

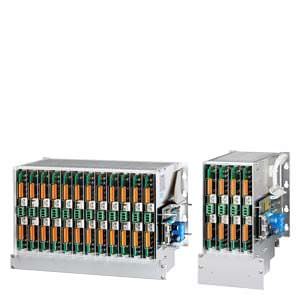

Rack mounting frame, slim-line version and expansion frame, slim-line version

The CPU and the control module are also located on the right side of the rack. This rack is suitable for direct installation in a control cabinet and accommodates up to four power output modules and can be extended with the expansion rack to take another four power output modules. It is mounted to the left of the rack mounting frame slim-line version and connected to it by means of a cable.

An additional fan unit is available as an accessory which is attached from below to the rack mounting frame, slim-line version and expansion rack, slim-line version.

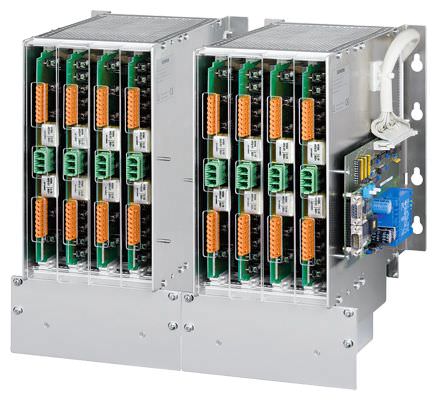

Rack mounting frame, slim-line version 6BK1700‑2AA80‑0AA0 (right) and expansion frame, slim-line version 6BK1700‑3AA00‑0AA0 (left) with fan units 6BK1700‑2GA10‑0AA0 attached below

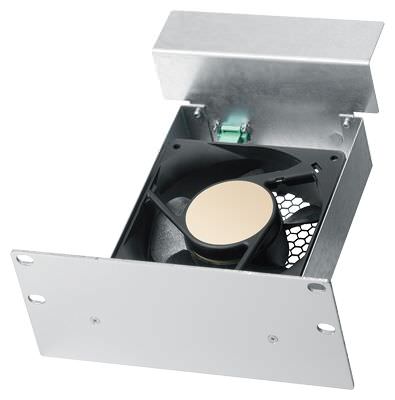

Fan unit 6BK1700‑2GA10‑0AA0

Дизайн

• 19" rack:
  • Backplane panel for CPU, control module and bus module
  • Holders for 4 or 12 power output modules
  • Partition as cover when slots are not all populated
• CPU with PROFIBUS interface module
• Control module
  • Power supply for the modules of the heater controller
  • Decoding for control of the power output modules
• Bus module
  • contains 4 or 12 direct plug-in connectors for connecting the control module to the power output modules
• Heat dissipation possible with optional fan units

Функции

Communications

• PROFIBUS DP
  • Import of the parameter settings from the higher-level controller
  • Transfer of the diagnostic information to the higher-level controller
• Internal system bus via bus PCB
• Control and monitoring of up to 192 power output channels

Performance features

• Calculation of the emitter manipulated variables of the power output channels
• Setpoints can be adjusted from 0% to 100% in increments of 1%

Diagnostics

• Evaluation of diagnostics information from connected power output modules
• Automatic detection of the line frequency

Forced ventilation

Depending on the switching capacity and ambient temperature, the rack may have to be forced ventilated. Fan units are available as optional accessories for this purpose (see "Accessories"). For detailed information, refer to the "SIPLUS HCS716I Heater Control System" Operating Instructions, http://support.automation.siemens.com/WW/view/en/50695867.

Технические данные

Дополнительно

¹⁾ Fan units for hinged frame, mounting frame, and mounting frame without flange are available from: HEITEC AG see http://www.heitec.de.

Дальнейшая информация

For more information, visit http://www.siemens.com/siplus-hcs.
