Power output modules Siemens

Обзор



The power output modules are an important component of the SIPLUS HCS716I heater control.

Three different power output modules can be used depending on the application:

  • LA716 power output module – the universal version
  • LA716I power output module – the innovative version
  • LA716I HP power output module – the HighPower version

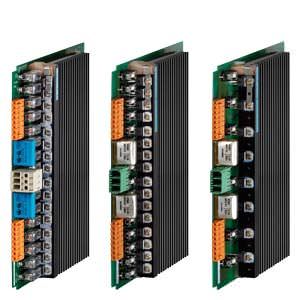

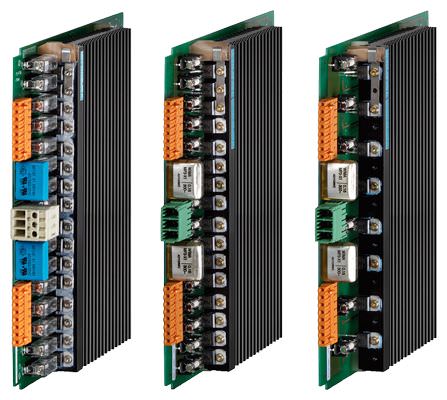

Power output modules LA716 (left), LA716I (center) and LA716I HP (right)

LA716 power output module

The universal power output module provides 16 channels for connecting resistive loads. Up to 650 W can be used per output channel.

LA716I power output module

The innovative power output module provides 16 channels for connecting resistive loads. Up to 1 150 W can be used per output channel.

LA716I HP power output module

The HighPowerversion provides 8 channels for connecting resistive loads. Up to 2,300 W can be used per output channel.

Дизайн


  • Connection of the heat emitters by means of two 8-pin mating connectors (the heat emitter and mating connector must be ordered separately.)
  • Mains infeed at the front:
    • LA716 power output module: 3-pole terminal (Lx/N/Ly)
    • LA716I and LA716I HP power output modules: 3-pole connector (Lx/N/Ly)

Функции



Power switching elements

  • Power triacs with zero crossover switching
  • Protection of triacs and opto-triacs against overvoltages by Transil diodes

Output power

LA716 power output module

  • 16 power channels of 230 V each (8 outputs per phase)
  • Max. 10 400 W switching capacity per module

LA716I power output module

  • 16 power channels of 230 V each (8 outputs per phase)
  • Max. 14 720 W switching capacity per module

LA716I HP power output module

  • 8 power channels of 230 V each (4 outputs per phase)
  • Max. 14 720 W switching capacity per module

Temperature monitoring

There is an NTC thermistor on the heat sink for monitoring its temperature. In the event of an overtemperature, this temperature-dependent resistor issues a signal to the higher-level controller.

Fuses

LA716 power output module

  • Each output is protected by a 5 A fuse in an accessible fuse holder for protection of the power triac.
  • A fuse cover is provided as a shock hazard protection.

LA716I power output module

  • Each output is protected by a 5 A fuse in an accessible fuse holder for protection of the power triac.
  • A plexiglass cover is provided as a shock hazard protection on the front.

LA716I HP power output module

  • Each output is protected by a 10 A fuse in an accessible fuse holder for protection of the power triac.
  • A plexiglass cover is provided as a shock hazard protection on the front.

Diagnostics facilities

Diagnostics functions are provided as standard to detect the following faults:

  • Circuit breaker triac at high resistance or internal fuse blown
  • Channel fuse blown on the module
  • External fault such as blown fuse, heat emitter or cable breakage

Технические данные



Order number



6BK1700-2BA70-0AA1

6BK1700-4BA80-0AA0

6BK1700-4CA00-0AA0

Product designation



HCS716I power module LA716

HCS716I power module LA716I

HCS716I power module LA716I HP

General technical data:









Control version / of heat emitters



Full-wave control

Type of load



Ohmic load

Equipment marking / acc. to DIN EN 81346-2



Q

Degree of pollution



2

Supply voltage:









Switching capacity current / per phase / maximum

A

23

32

Design of the electrical isolation



Optocoupler between main circuit and SELV/PELV

Power capacity









  • ● of the module / with delta connection / at 40 °C









  • — with fan / maximum

kW

10.4

14.72

  • — without fan / maximum

kW

6.2

6.5

  • ● maximum permissible

kW

10.4

14.72

Type of electrical connection / for supply voltage



Terminal, 3-pin

Connector, 3-pin

Type of connectable conductor cross-section









  • ● for supply voltage









  • — solid



1x (0.5 ... 6 mm²)

1x (0.2 ... 10 mm²)

  • — finely stranded / with core end processing



1x (0.5 ... 4 mm²)

1x (0.25 ... 6 mm²)

  • ● for AWG conductors / for supply voltage



22 ... 10

24 ... 8

Power Electronics:









Number of outputs / for heating power



16

8

Number of heat emitters / per output / maximum



1

Output voltage / with star connection

V

230

Design of the overvoltage protection



Transil diodes

Power capacity / per output









  • ● minimum

W

75

  • ● maximum

W

650

1 150

2 300

Output current / at output / for heating power / Rated value

A

5

10

Design of short-circuit protection / for heating power / per output



Fuse 5 A

Fuse 10 A

  • ● Galvanic isolation / between the outputs



No

Type of electrical connection / at output / for heating and fan



Socket strip, 8-pole

Type of connectable conductor cross-section









  • ● for heating and fan









  • — solid



1x (0.2 ... 1.5 mm²)

  • — finely stranded / with core end processing



1x (0.2 ... 1.5 mm²)

  • ● for AWG conductors / stranded



28 ... 16

Installation/ mounting/ dimensions:









Depth

mm

241

279

Width

mm

31

Height

mm

233.4

Further information:









Design of the power supply



Power supply via module rack

Type of the temperature monitoring



NTC thermistor

Diagnostics function









  • ● Tripped fuse



Yes

  • ● Cable break



Yes

  • ● Heat emitter failure



Yes


Дополнительно



Design

for power output module

Type

Data link


  • 5 A quick blow/250 V

LA716, LA716I

200021116

  • 10 A quick blow/250 V

LA716I HP

A5E00186303

Mating connectors


  • 3-pin for mains connection

LA716I, LA716I HP

A5E30280233

  • 8-pin for connection of the heat emitters

LA716, LA716I, LA716I HP

A5E00507233



Дальнейшая информация



For more information, visit http://www.siemens.com/siplus-hcs.
