Fan modules Siemens

Обзор

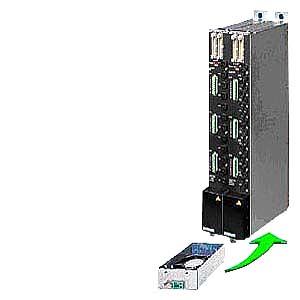

Fan module for installation underneath two power output modules

The fan module is available for reliable heat dissipation of the LA724I and LA724I HP power output modules. The fan module is a standard fan in an IP00 enclosure.

The fan module can be connected to

  • 2 LA724I or LA724I HP power output modules

or

  • 1 central interface module and 1 LA724I or LA724I HP power output module

Технические данные



Order number



6ES7171-3AA00-0AA0

Power supply:





Supply voltage / with AC / Rated value

V

230

Relative negative tolerance / of the supply voltage

%

18

Relative positive tolerance / of the supply voltage

%

15

Supply voltage frequency





  • ● 1 / Rated value

Hz

50

  • ● 2 / Rated value

Hz

60

Relative symmetrical tolerance / of the supply voltage frequency

%

5

Active power consumption

W

6

Type of electrical connection / for supply voltage



Connector, 2-pole

Type of connectable conductor cross-section





  • ● for supply voltage





  • — solid



1x (0.2 ... 2.5 mm²)

  • — finely stranded / with core end processing



1x (0.25 ... 2.5 mm²)

  • ● for AWG conductors / for supply voltage



24 ... 12

Installation/ mounting/ dimensions:





Width

mm

100

Height

mm

50

Depth

mm

162
