SIPLUS HCS4200 heating control system

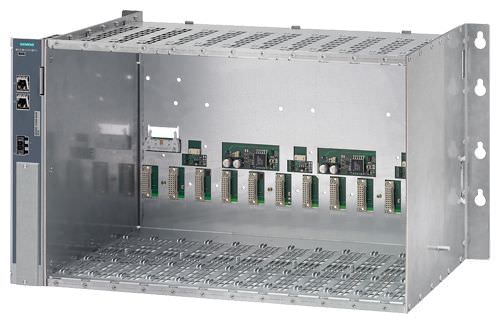

The rack constitutes the basic mechanical structure of SIPLUS HCS4200

Дизайн


  • Rack for mounting on the cabinet rear panel
  • Rear bus board for holding 12 power output modules
  • Heat dissipation with optional fan units, that is, 1 fan module is required for every 4 power output modules.

Функции


  • Rack for holding up to 12 power output modules.
  • Internal communication takes place via a bus board on the rear.
  • Depending on the switching capacity and ambient temperature, the rack may have to be force-ventilated.
  • The fan units are available as optional accessories (Article No. 6BK1942-4AA00-0AA0).
  • For detailed information, go to the "SIPLUS HCS4200 Heating Control System" Operating Instructions, http://support.automation.siemens.com/WW/view/en/xxxxxxxx.

Технические данные



Order number



6BK1942-0BA00-0AA0

6BK1942-0AA00-0AA0

product brand name



SIPLUS

Product designation



Rack4200 for 12 POM

General technical data:







Equipment marking acc. to DIN EN 81346-2



K

Number of slots



4

12

Type of power output connectable



POM4220

Supply voltage:







Power capacity with fan per rack maximum

kW

64

193

Power capacity without fan per rack maximum

kW

29

88

Communication:







Design of the interface



system interface

Mechanical data:







mounting position



horizontal

Mounting type



Control cabinet backplane

Type of ventilation



Self ventilation or forced ventilation

Vibration resistance







  • ● during operation acc. to IEC 60068-2-6



10 ... 58 Hz / 0.15 mm, 58 ... 150 Hz / 1g

  • ● during storage acc. to IEC 60068-2-6



5 ... 9 Hz / 3.5 mm, 9 ... 500 Hz / 1g

Shock resistance







  • ● acc. to IEC 60068-2-27



15g / 11 ms / 3 shocks / axis

  • ● acc. to IEC 60068-2-29



25 g / 6 ms / 1000 shocks / axis

Protection class IP



IP20

Depth

mm

293

Height

mm

285

Width

mm

204

488

Electromagnetic compatibility:







EMC emitted interference



Limit value in accordance with IEC 61000-6-4:2007 + A1:2011

Field-bound parasitic coupling acc. to IEC 61000-4-3



10 V/m (80 ... 1000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)

Electrostatic discharge acc. to IEC 61000-4-2



4 kV contact discharge / 8 kV air discharge

Ambient conditions:







Ambient temperature







  • ● during operation



0 ... 55

  • ● during storage



-25 ... +70

  • ● during transport



-25 ... +70

Air pressure







  • ● during operation



860 ... 1 080

  • ● during storage



660 ... 1 080

Degree of pollution



2

Installation altitude at height above sea level maximum

m

2 000

Relative humidity







  • ● at 25 °C during operation maximum

%

95

  • ● at 50 °C during operation maximum

%

50

  • ● at 50 °C during operation maximum Note



95% at 25 °C, decreasing linearly to 50% at 50 °C

Certificates/ approvals:







Certificate of suitability



CE


Дополнительно



The following accessories are available for the rack:

  • Fan module:
    • One fan module supplies up to 4 power output modules plugged into the rack. It is attached to the top.
    • The 24 V DC power supply is via a 2-core cable with a single connector (included in the scope of delivery) and is plugged in at the rear bus board.
  • Blanking plate:
    • If not all slots in the rack are occupied by power output modules, the free slots must be covered with a blanking plate.
    • The plate is secured with 1 screw at the top und 1 screw at the bottom.

Дальнейшая информация



For more product details go to the "SIPLUS HCS Rack 4200 for 12 POM" Compact Operating Instructions, http://support.automation.siemens.com/WW/view/en/107667333
