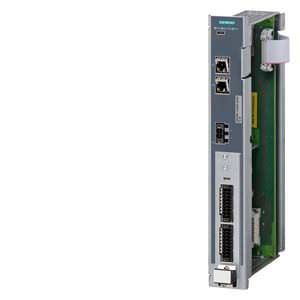

Central Interface Module (CIM) Siemens

Обзор



The central interface module (CIM) is the intelligent processor module of the SIPLUS HCS4200 heating control system.

Дизайн


  • Module encapsulated in metal enclosure
  • 3 LEDs for: Operating state (green), heating on (yellow) and fault (red)
  • PROFINET interface (up to 100 MBaud) with double switch
  • Differential serial bus interface for the power output modules (POMs)
  • Secured with 6 screws to the left side of the rack
  • Power supply for the power output modules and the fan modules of the heating control system

Функции



Communication

PROFINET

  • Import of the parameter settings from the higher-level controller
  • Transfer of the diagnostic information to the higher-level controller
  • Serial bus (internal)
  • Control and monitoring of max. 192 power output channels

Performance features

  • Calculation of manipulated variables of power output channels
  • Setpoints can be adjusted from 0 % to 100 % in increments of 1 %
  • Uniform load distribution over all power output channels and over all the SIPLUS HCS4200 heating controllers operated in the group
  • Simple adaptation to any production process through the selection of operating modes
  • Diagnostic functions
  • Evaluation of diagnostics information from connected power output modules
  • Automatic detection of the line frequency

Технические данные



Order number



6BK1942-1AA00-0AA0

product brand name



SIPLUS

Product designation



CIM4210 PROFINET

General technical data:





Equipment marking acc. to DIN EN 81346-2



K

Number of slots



1

Supply voltage:





Type of voltage of the supply voltage



DC

Supply voltage 1 at DC Rated value

V

24

Relative negative tolerance of the supply voltage

%

20

Relative positive tolerance of the supply voltage

%

20

Active power consumption

W

3

Type of electrical connection for supply voltage



Connector, 2 x 2-pole

Type of connectable conductor cross-section





  • ● for supply voltage solid



1x (0.2 ... 2.5 mm²)

  • ● for supply voltage finely stranded with core end processing



1x (0.2 ... 2.5 mm²)

  • ● for AWG conductors for supply voltage



26 ... 12

Communication:





Design of the interface



PROFINET IO

Protocol is supported





  • ● PROFINET IO protocol



Yes

Transfer rate





  • ● with PROFINET IO maximum

Mbit/s

100

Type of electrical connection





  • ● of the PROFINET interface



2 x RJ45

Display:





Number of status displays



3

Display version as status display by LED



LED green = ready, LED yellow = heating on/off, LED red = error display

Mechanical data:





mounting position



vertical

Mounting type



Screw mounting to rack

Type of ventilation



Forced ventilation

Vibration resistance





  • ● during operation acc. to IEC 60068-2-6



10 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1g

  • ● during storage acc. to IEC 60068-2-6



5 ... 8.5 Hz / 3.5 mm, 8.5 ... 500 Hz / 1g

Shock resistance





  • ● acc. to IEC 60068-2-29



25 g / 6 ms / 1000 shocks / axis

  • ● acc. to IEC 60068-2-27



15g / 11 ms / 3 shocks / axis

Protection class IP



IP20

Depth

mm

136

Height

mm

285

Width

mm

43

Electromagnetic compatibility:





EMC emitted interference



Limit value in accordance with IEC 61000-6-4:2007 + A1:2011

Conducted interference due to burst acc. to IEC 61000-4-4



2 kV power supply lines, 2 kV PROFINET cables

Conducted interference due to surge acc. to IEC 61000-4-5



DC supply lines: 0.5 kV symmetric and unsymmetric PROFINET cables: 1 kV unsymmetric

Conducted interference due to high-frequency radiation acc. to IEC 61000-4-6



10 V (0.15 ... 80 MHz)

Field-bound parasitic coupling acc. to IEC 61000-4-3



10 V/m (80 ... 1000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)

Electrostatic discharge acc. to IEC 61000-4-2



4 kV contact discharging, 8 kV air discharging

Overvoltage category



III

Ambient conditions:





Ambient temperature





  • ● during operation



0 ... 55

  • ● during storage



-25 ... +70

  • ● during transport



-25 ... +70

Air pressure





  • ● during operation



860 ... 1 080

  • ● during storage



660 ... 1 080

Degree of pollution



2

Installation altitude at height above sea level maximum

m

2 000

Relative humidity





  • ● at 25 °C during operation maximum

%

95

  • ● at 50 °C during operation maximum

%

50

  • ● at 50 °C during operation maximum Note



95% at 25 °C, decreasing linearly to 50% at 50 °C
