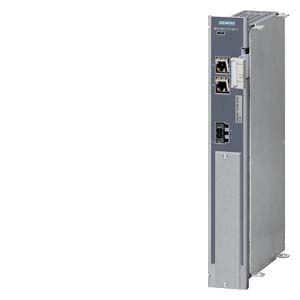

Central Interface Module (CIM) Siemens

Обзор



The Central Interface Module (CIM) is the intelligent processor module of the SIPLUS HCS4300 heating control system.

Дизайн


  • Module (encapsulated) in metal enclosure
  • 3 LEDs for normal operation (green), heating on (yellow) and fault (red)
  • PROFINET interface (up to 100 MBaud) with double switch
  • Differential serial bus interface for the power output modules (POM)
  • Connection of up to 6 POMs possible per CIM

Функции



Communication

PROFINET

  • Import of parameter settings from the higher-level control system
  • Transfer of diagnostic information to the higher-level control system

Serial bus (internal)

  • Control and monitoring of up to 54 power channels

Performance features

  • Calculation of manipulated variables of power channels
  • Setpoints can be adjusted from 0% to 100% in increments of 1%
  • Even load distribution over all power channels and over all SIPLUS HCS4300 heating control systems operated as an integrated group
  • Simple adaptation to any production process through the selection of operating modes
  • Diagnostics functions
  • Evaluation of diagnostics information from connected power output modules
  • Phase-sequence detection indicating whether phases L1, L2, and L3 are correctly connected
  • Automatic detection of the line frequency

Технические данные



Order number



6BK1943-1AA00-0AA0

product brand name



SIPLUS

Product designation



CIM4310 PROFINET

General technical data:





Equipment marking acc. to DIN EN 81346-2



K

Number of slots



1

Type of power output connectable



POM4320

Power supply:





Type of voltage of the supply voltage



DC

Supply voltage 1 at DC Rated value

V

24

Relative negative tolerance of the supply voltage

%

20

Relative positive tolerance of the supply voltage

%

20

Active power consumption

W

3

Type of electrical connection for supply voltage



Connector, 2 x 2-pole

Type of connectable conductor cross-section





  • ● for supply voltage solid



1x (0.2 ... 2.5 mm²)

  • ● for supply voltage finely stranded with core end processing



1x (0.2 ... 2.5 mm²)

  • ● for AWG conductors for supply voltage



26 ... 12

Communication:





Design of the interface



PROFINET IO

Protocol is supported





  • ● PROFINET IO protocol



Yes

Transfer rate





  • ● with PROFINET IO maximum

Mbit/s

100

Type of electrical connection





  • ● of the PROFINET interface



2 x RJ45

Number of status displays



3

Display version as status display by LED



LED green = ready, LED yellow = heating on/off, LED red = error display

Mechanical data:





mounting position



vertical

Mounting type



Screw mounting to POM

Type of ventilation



Forced ventilation

Shock resistance





  • ● acc. to IEC 60068-2-27



15g / 11 ms / 3 shocks / axis

  • ● acc. to IEC 60068-2-29



25 g / 6 ms / 1000 shocks / axis

Vibration resistance





  • ● during operation acc. to IEC 60068-2-6



10 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1g

  • ● during storage acc. to IEC 60068-2-6



5 ... 8.5 Hz / 3.5 mm, 8.5 ... 500 Hz / 1g

Protection class IP



IP20

Width

mm

56

Height

mm

285

Depth

mm

136

Electical data:





Conducted interference due to burst acc. to IEC 61000-4-4



2 kV power supply lines, 2 kV PROFINET cables

Conducted interference due to surge acc. to IEC 61000-4-5



DC supply lines: 0.5 kV symmetric and unsymmetric PROFINET cables: 1 kV unsymmetric

Conducted interference due to high-frequency radiation acc. to IEC 61000-4-6



10 V (0.15 ... 80 MHz)

Electrostatic discharge acc. to IEC 61000-4-2



4 kV contact discharge / 8 kV air discharge

Field-bound parasitic coupling acc. to IEC 61000-4-3



10 V/m (80 ... 1000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)

EMC emitted interference



Limit value in accordance with IEC 61000-6-4:2007 + A1:2011

Overvoltage category



III

Ambient conditions:





Ambient temperature





  • ● during operation

°C

0 ... 55

  • ● during storage

°C

-25 ... +70

  • ● during transport

°C

-25 ... +70

Air pressure





  • ● during operation

hPa

860 ... 1 080

  • ● during storage

hPa

660 ... 1 080

Relative humidity





  • ● at 25 °C during operation maximum

%

95

  • ● at 50 °C during operation maximum

%

50

  • ● at 50 °C during operation maximum Note



95% at 25 °C, decreasing linearly to 50% at 50 °C

Degree of pollution



2

Installation altitude at height above sea level maximum

m

2 000


Order number



6BK1943-1AA00-0AA0

product brand name



SIPLUS

Product designation



CIM4310 PROFINET

General technical data:





Equipment marking / acc. to DIN EN 81346-2



K

Number of slots



1

Type of power output / connectable



POM4320

Power supply:





Type of voltage / of the supply voltage



DC

Supply voltage / 1 / at DC / Rated value

V

24

Relative negative tolerance / of the supply voltage

%

20

Relative positive tolerance / of the supply voltage

%

20

Active power consumption

W

3

Type of electrical connection / for supply voltage



Connector, 2 x 2-pole

Type of connectable conductor cross-section





  • ● for supply voltage





  • — solid



1x (0.2 ... 2.5 mm²)

  • — finely stranded / with core end processing



1x (0.2 ... 2.5 mm²)

  • ● for AWG conductors / for supply voltage



26 ... 12

Communication:





Design of the interface



PROFINET IO

Protocol / is supported





  • ● PROFIBUS DP protocol



-

  • ● PROFINET IO protocol



Yes

Transfer rate





  • ● with PROFIBUS DP / maximum



-

  • ● with PROFINET IO / maximum

Mbit/s

100

Type of electrical connection





  • ● of the PROFIBUS interface



-

  • ● of the PROFINET interface



2 x RJ45

Number of status displays



3

Display version / as status display by LED



LED green = ready, LED yellow = heating on/off, LED red = error display

Mechanical data:





mounting position



vertical

Mounting type



Screw mounting to POM

Type of ventilation



Forced ventilation

Shock resistance





  • ● acc. to IEC 60068-2-27



15g / 11 ms / 3 shocks / axis

  • ● acc. to IEC 60068-2-29



25 g / 6 ms / 1000 shocks / axis

Vibration resistance





  • ● during operation / acc. to IEC 60068-2-6



10 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1g

  • ● during storage / acc. to IEC 60068-2-6



5 ... 8.5 Hz / 3.5 mm, 8.5 ... 500 Hz / 1g

Protection class IP



IP20

Width

mm

56

Height

mm

285

Depth

mm

136

Electical data:





Conducted interference / due to burst / acc. to IEC 61000-4-4



2 kV power supply lines, 2 kV PROFINET cables

Conducted interference / due to surge / acc. to IEC 61000-4-5



DC supply lines: 0.5 kV symmetric and unsymmetric PROFINET cables: 1 kV unsymmetric

Conducted interference / due to high-frequency radiation / acc. to IEC 61000-4-6



10 V (0.15 ... 80 MHz)

Electrostatic discharge / acc. to IEC 61000-4-2



4 kV contact discharge / 8 kV air discharge

Field-bound parasitic coupling / acc. to IEC 61000-4-3



10 V/m (80 ... 1000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)

EMC emitted interference



Limit value in accordance with IEC 61000-6-4:2007 + A1:2011

Overvoltage category



III

Ambient conditions:





Ambient temperature





  • ● during operation

°C

0 ... 55

  • ● during storage

°C

-25 ... +70

  • ● during transport

°C

-25 ... +70

Air pressure





  • ● during operation

hPa

860 ... 1 080

  • ● during storage

hPa

660 ... 1 080

Relative humidity





  • ● at 25 °C / during operation / maximum

%

95

  • ● at 50 °C / during operation / maximum

%

50

  • — Note



95% at 25 °C, decreasing linearly to 50% at 50 °C

Degree of pollution



2

Installation altitude / at height above sea level / maximum

m

2 000
