SIPLUS CMS1000 condition monitoring system Siemens

Область применения



SIPLUS CMS1000 is the starter system for condition monitoring of rolling-contact bearings in the industrial environment.

The SIPLUS CMS1000 Condition Monitoring System can be used to monitor mechanical components such as motors, generators, fans, or pumps based on characteristic values. Mechanical wear and other damage-related causes can thus be detected in time before a total failure of the mechanical component in the plant occurs.

SIPLUS CMS1000 can be integrated into the Totally Integrated Automation (TIA) architecture.

Обзор



SIPLUS CMS1000 offers an easy introduction to continuous monitoring without any expert knowledge required. The SIPLUS CMS1000 Condition Monitoring System works using characteristic values.

Other advantages at a glance:

  • Permanent monitoring to protect the machines
  • Effective monitoring of important processes and systems
  • Energy efficiency support
  • Early detection of damage
  • Scheduled maintenance instead of spontaneous repair
  • Reduction in maintenance costs
  • Increase in plant availability
  • Optimum utilization of service life of the units

Дизайн

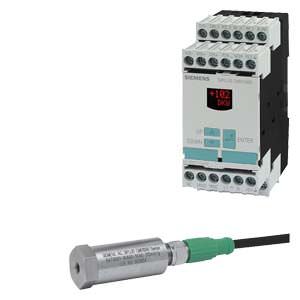

SIPLUS CMS1000 consists of two components:

  • SIPLUS CMS1000 Bearing Guard
  • SIPLUS CMS1000 Sensor

Способ действия

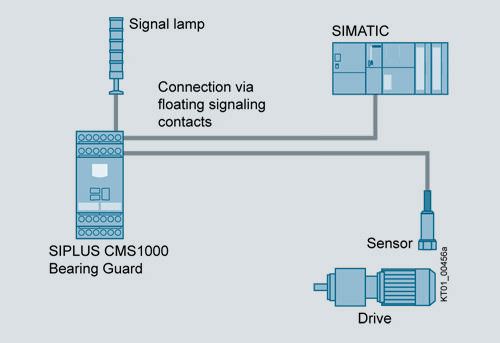

The Bearing Guard analyzes the measured values in accordance with the VDI 3832 procedure (DKW) and DIN ISO 10816‑3 (RMS) and signals a limit violation on the display and via floating contacts.

The sensor measures the vibration acceleration of the monitored roller bearing as well as general component and machine vibrations.

Дальнейшая информация



For further product details, refer to the
