The compact SIPLUS CMS1000 Bearing Guard is the core component in the overall system.

It analyses the measured signals from the sensor:

  • For analysis of the status of rolling-contact bearings in accordance with VDI 3832 (DKW)
  • Machine monitoring RMS in accordance with DIN ISO 10816‑3
  • Signaling of limit violations via floating contacts

Дизайн

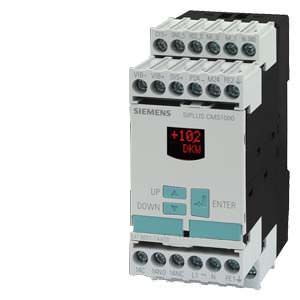

The Bearing Guard consists of four terminal blocks A, B, C and D, a display, and associated control elements. The terminal blocks are coded and therefore constitute non-interchangeable connection elements.

Функции



The Bearing Guard reliably analyzes the status of machines and rolling-contact bearings and signals limit violations via floating contacts.

Functions:

  • Low-cost monitoring of rolling-contact bearings
  • Diagnostics procedure in accordance with VDI 3832 and DIN ISO 10816‑3
  • Monitoring of motors with fixed speed
  • Easy commissioning by means of teach-in (learning mode) via LC display
  • Adjustable limits for warning and alarm
  • Limit signaling via two floating contacts

Технические данные



Order number



6AT8001-1AA00

Product designation



SIPLUS CMS1000 Bearing Guard

Product description



Device for monitoring mechanical vibrations based on characteristic values

General technical data:





Protection class IP



IP20

Ambient temperature





  • ● during operation

°C

-25 ... +60

  • ● during storage

°C

-25 ... +60

  • ● during transport

°C

-25 ... +60

Relative humidity / without condensation / during operation

%

5 ... 95

Consumed current / for DC / at 24 V / typical

mA

210

Active power loss / total / typical

W

3.5

Equipment marking





  • ● acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750



P

  • ● acc. to DIN EN 61346-2



P

Power supply:





Type of voltage / of the supply voltage



AC/DC

Supply voltage / 1





  • ● for DC / Rated value

V

24

  • ● with AC





  • — at 50 Hz

V

115 ... 240

  • — at 60 Hz

V

115 ... 240

Installation/ mounting/ dimensions:





mounting position / recommended



vertical

Mounting type



standard rail

Dimensions:



-

Width

mm

45

Height

mm

106

Depth

mm

86

Inputs/ Outputs:





Number of sensor inputs





  • ● for IEPE sensors



0

  • ● for MEMS sensors



1

Number of disable inputs



1

Number of speed inputs



1

Number of signaling outputs



2

Design of the switching input / of the disable inputs / DC 24 V



Yes

Input voltage / at speed input / DC 24 V digital



Yes

Input voltage / at speed input / -10 V ... 10 V



Yes

Input current / at speed input





  • ● 0 mA ... 20 mA



No

  • ● 4 mA ... 20 mA



Yes

Type of switching output / of the signaling outputs



Relay output

Connections:





Type of electrical connection





  • ● of the inputs and outputs



screw terminal

  • ● for auxiliary and control current circuit



screw-type terminals

Mechanical data:





Product function





  • ● removable terminal for main circuit



Yes

  • ● removable terminal for auxiliary and control circuit



Yes

Connectable conductor cross-section / for auxiliary contacts





  • ● single or multi-stranded

mm²

0.5 ... 4

  • ● finely stranded





  • — with core end processing

mm²

0.5 ... 2.5

  • — without core end processing

mm²

0.5 ... 2.5

Required spacing / with side-by-side mounting





  • ● upwards

mm

25

  • ● forwards

mm

80

  • ● at the side

mm

0

  • ● downwards

mm

25

Material / of the enclosure



plastic

Design of the thread / of the connection screw



M3

Size of the screwdriver tip



Size 2 and Pozidriv 2

Tightening torque / with screw-type terminals

N·m

0.8 ... 1.2

Weight

g

300

Communication:





Product function / Bus communication



No

Standards:





Standard





  • ● for interference immunity



IEC 61326 - 1, IEC 61326 - 2 - 3

  • ● for safety



IEC 61010-1

Certificate of suitability



CE


Дальнейшая информация



For further product details, refer to the "SIPLUS CMS1000" Operating Instructions,http://support.automation.siemens.com/WW/view/en/42469516.
