Accessories Siemens

Обзор

The following accessories (to be ordered separately) are available for the SIPLUS CMS1000 Condition Monitoring System:

• Sensor for detecting the vibration acceleration of rolling-contact bearings
• Cables for connecting the bearing guard and sensor
  • 4 m long
  • 10 m long
  • 30 m long
• Adapter for connecting the sensor to different motors
  • M6/M6, M6/M8
  • M6/SPM

Дизайн

Sensor

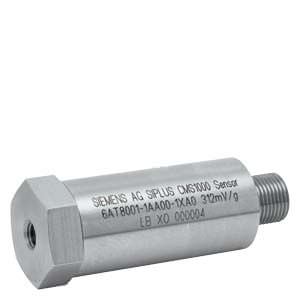

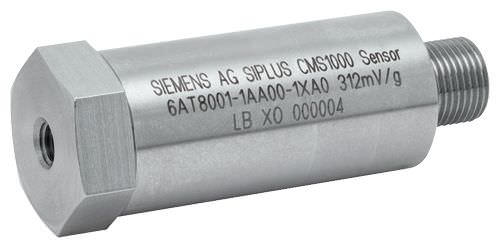

Sensor 6AT8001‑1AA00‑1XA0

The SIPLUS CMS1000 Sensor is designed with ground insulation. It consists of an M12 sensor cable and an M6 thread for adapting to the machine chassis.

Technical features:

• Industry-standard design
• Sensor on the basis of MEMS technology (micro electro-mechanical systems)
• Fast and easy installation (e.g. on fans, pumps and motors)
• High IP67 degree of protection

The sensor reliably records the vibration acceleration of rolling-contact bearings and converts this into an analog, differential voltage signal.

Cable

The SIPLUS CMS1000 Bearing Guard and Sensor are connected via the sensor cable. For connection of the sensor, the cable is provided with a suitably-fitting M12 connector.

Pin assignment of M12 plug

Adapters

Two different adapters are available for installing the SIPLUS CMS1000 Sensor in the correct measuring position:

• M6/M6 or M6/M8 adapter:
  for motors with a bearing monitoring connection with M6 or M8 thread
• M6/SPM adapter
  for IEC squirrel-cage motors with option for bearing monitoring Q01/G50. To check the bearing vibration, a measuring nipple for SPM shock-pulse measurement is attached here.

Чертеж

Sensor 6AT8001‑1AA00‑1XA0

Технические данные

Дальнейшая информация

For further product details, refer to the "SIPLUS CMS1000" Operating Instructions, http://support.automation.siemens.com/WW/view/en/42469516.
