The SIPLUS CMS1000 Sensor reliably records the vibration acceleration of rolling-contact bearings and converts this into an analog, differential voltage signal.

Advantages:

  • Industry-standard design
  • Sensor on the basis of MEMS technology (Micro Electro-Mechanical Systems)
  • Fast and easy installation (e.g. on fans, pumps and motors)
  • High IP67 degree of protection

Дизайн



The SIPLUS CSM1000 Sensor is designed with ground insulation. It consists of an M12 sensor cable and an M6 thread for adapting to the machine chassis.

Функции



The SIPLUS CMS1000 Sensor reliably records the vibration acceleration of rolling-contact bearings and converts this into an analog, differential voltage signal.

Чертеж

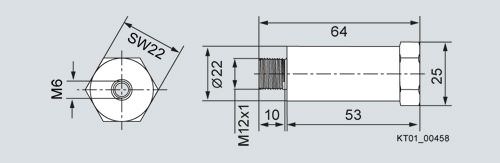

Sensor 6AT8001‑1AA00‑1XA0

Технические данные



SIPLUS CMS1000 Sensor



Interfaces



Power supply


  • DC input voltage

5 V

  • Typ. power loss at 5 V DC

20 mW

Sensor connection


  • Measuring range

±5 V

  • Frequency range (linear)

0 Hz ... 6.5 kHz

  • Typ. sensitivity

312 mV/g

  • Connection

4-pin M12 socket

Constructional design


  • Length (l)

64 mm

  • Diameter (Ø)

22 mm (SW22; SW: width across flats)

  • Material

Stainless steel

  • Weight

100 g

Environmental conditions



Storage/transport temperature

-40 ... +120 °C

Ambient temperature

-40 ... +120 °C

Relative humidity during operation

5 ... 95 %, condensation permissible

Safety regulations

IEC 61010-1

Electromagnetic compatibility

IEC 61326-1

Degree of protection

IP67

Cables



CABLE-MEMS;
4 x 0.34 mm² PUR shielded cable, M12, open end

  • 4 m long
  • 10 m long
  • 30 m long


6AT8001-1AA00-1AA4

6AT8001-1AA00-1AB1

6AT8001-1AA00-1AB3

Accessories (optional)



Adapters

  • M6/M6 or M6/M8
  • M6/SPM

Approvals



CE

EMC Directive 2004/108/EC
Low-voltage directive 2006/95/EC



Дальнейшая информация



For further product details, refer to the "SIPLUS CMS1000" Operating Instructions underhttp://support.automation.siemens.com/WW/view/de/42469516.
