SIPLUS CMS2000 condition monitoring system Siemens

Область применения



In addition to the productivity of a plant, lifecycle costs are increasingly becoming the focus of attention. Increasing plant availability is an important topic in all sectors in which machines are used. Continuous plant monitoring and thus the early detection of impending failures are a suitable measure to minimize downtimes. Status-oriented maintenance permits an increase in availability with a simultaneous reduction of lifecycle costs.

Visualization and parameterization of the SIPLUS CMS2000 is simple using a Web browser - no additional software is required. Handling has therefore been considerably simplified for the service personnel, both locally as well as in remote operation. SIPLUS CMS2000 is modularly expandable, e.g. with the SIPLUS CMS2000 VIB‑MUX expansion module and the temperature module from the SIMOCODE range.

Обзор



The modular and parameterizable SIPLUS CMS2000 Condition Monitoring System is an easy to parameterize and web-based system.

It provides the following benefits:

  • Analysis of the status of rolling-contact bearings in accordance with VDI 3832 (DKW)
  • Machine monitoring RMS in accordance with DIN ISO 10816‑3
  • Detailed identification of damage with frequency-selective diagnostics
  • Raw data recording and export for SIPLUS CMS X-Tools
  • Trend recording and analysis
  • Monitoring of process variables
  • Signaling of limit violations
  • Permanent monitoring to protect the machines
  • Effective monitoring of important processes and systems
  • Energy efficiency support
  • Early detection of damage
  • Scheduled maintenance instead of spontaneous repair
  • Reduction in maintenance costs
  • Increased system availability
  • Optimum utilization of the service life of the units

The SIPLUS CMS2000 Condition Monitoring System is modularly expandable, e.g. with the

  • SIPLUS CMS2000 VIB‑MUX expansion module for expanding the IEPE vibration channels
  • Temperature module for direct connection of temperature sensors (Pt100, Pt1000, …)

Дизайн

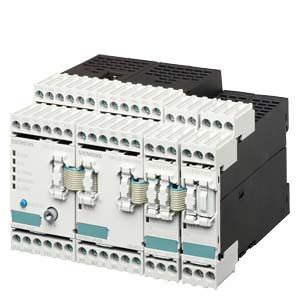

SIPLUS CMS2000 is a compact condition monitoring system that can be operated as a stand-alone unit, or linked to a remote service center (LAN interface).

The SIPLUS CMS2000 condition monitoring system comprises:

  • SIPLUS CMS2000 Basic Unit VIB
  • Maximum two SIPLUS CMS2000 VIB‑MUX expansion modules and/or additionally maximum two temperature modules

System configuration with SIPLUS CMS2000

Способ действия



Application area



Mechanical components

Motors, generators, fans, pumps, etc.

Damage analysis

Out-of-balance, misalignment, rolling-contact bearings, etc.

Analysis procedures



Characteristic values

  • Bearing monitoring:
    DKW, based on K(t) according to VDI 3832
  • Vibration monitoring:
    RMS based on DIN ISO 10816‑3

Vibration analysis

FFT, envelope curve, fingerprint comparison, trend analysis parameterizable

Monitoring function



Characteristic values

Adjustable limit values for DKW and RMS:
Warning, alarm

Frequency spectra

Adjustable warning and alarm bands

Analog inputs

Limit value monitoring

Temperature inputs

Limit monitoring

Recording function



Saving

Raw data logging: Manually or event-triggered, snapshot of the FFT, characteristic values, long-term trend recording

Output



Outputs

Binary outputs e.g. for traffic light systems

Parameterization and visualization

Web browser



Особенности



Visualization and parameterization of the SIPLUS CMS2000 is easy using a Web browser - no additional software is required. This greatly simplifies handling for the service personnel.

Further advantages:

  • Monitoring from individual machines up to complex drive trains
  • No additional software is required for parameterization and visualization
  • Proactive maintenance through detailed and early localization of damage
  • Fast full diagnostics at a glance
  • Event-driven notification to the Service Center
  • Expert analysis based on raw data

Дальнейшая информация



For further product details, refer to the
