The SIPLUS CMS2000 Basic Unit VIB is used for:

Monitoring of motors, generators, pumps, fans, or other mechanical components
Recording and analysis of vibrations, speed, and temperature

It is modularly expandable via the system interface, e.g. using SIPLUS CMS2000 VIB‑MUX expansion modules and temperature modules.

Дизайн

The SIPLUS CMS2000 Basic Unit VIB contains:

Integrated diagnostics software
Two IEPE interfaces for vibration sensors
Two analog inputs, one of which can be parameterized as a speed input
One speed input
Two digital inputs, three digital outputs

The following accessories can also be ordered, see "Accessories":

Shield support for grounding the cable ends
VIB-SENSOR vibration sensor for recording vibrations
SIMOCODE connecting cable and CABLE-MIL connecting cable in different lengths

Функции

The following functional scope is available by default in the SIPLUS CMS2000 Basic Unit VIB:

Characteristic values (bearing, vibration monitoring)
Frequency-selective analysis using FFT, H-FFT
Trend analysis
Limit monitoring of frequency bands, process variables, temperature
Recording with time stamp of trend values, raw data, frequency spectra, alarm log
Simple localization of damage using fingerprint comparison
Output of system and status messages
Extraction of raw data for further diagnoses
Web server and e-mail notification
Time synchronization via LAN
Diagnostics suppression via inhibit input

SIPLUS CMS X-Tools – powerful analysis software

To provide a more detailed diagnosis, the raw data recorded by the SIPLUS CMS2000 Basic Unit VIB can be forwarded to the SIPLUS CMS X‑Tools analysis software (not included in the scope of supply, see "Condition Monitoring System SIPLUS CMS4000" → "Analysis Software" → "SIPLUS CMS X‑Tools").

With SIPLUS CMS X‑Tools, the most varied parameters and signals can be logically combined as the basis for expert diagnostics. The interfaces to management systems can be structured flexibly.

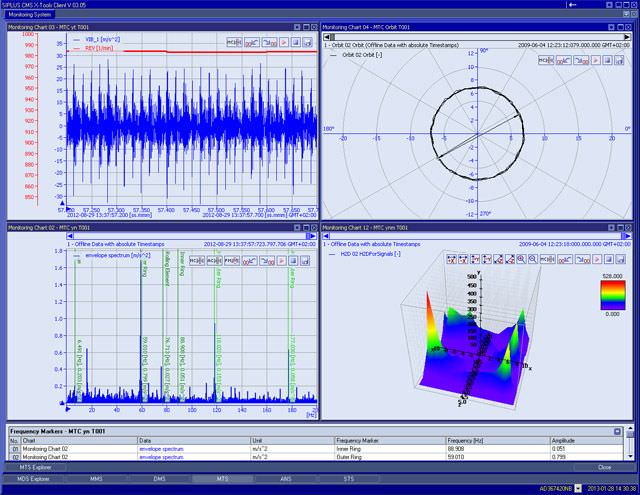

Representation via SIPLUS CMS X‑Tools with raw signal, envelope curves spectrum, orbit representation, and 2D histogram

Технические данные

Order number		6AT8002-1AA00
Product designation		SIPLUS CMS2000 Basic Unit VIB
Product description		Basic unit for monitoring vibrations in mechanical components based on characteristic values and frequency-selective analysis functions
General technical data:
Protection class IP		IP20
Ambient temperature
● during operation	°C	-20 ... +65
● during storage	°C	-25 ... +85
● during transport	°C	-25 ... +85
Relative humidity / without condensation / during operation	%	5 ... 95
physical measuring principle		Vibration acceleration
Vibration frequency measuring range	Hz	2 ... 10 000
Equipment marking
● acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750		P
● acc. to DIN EN 61346-2		P
Power supply:
Type of voltage / of the supply voltage		DC
Supply voltage / 1 / for DC / Rated value	V	24
Active power consumption / maximum	W	-
Installation/ mounting/ dimensions:
mounting position / recommended		vertical
Mounting type		standard rail
Width	mm	45
Height	mm	106
Depth	mm	124
Inputs/ Outputs:
Number of sensor inputs / for IEPE sensors		2
Number of outputs		-
Connections:
Type of electrical connection
● of the inputs and outputs		screw terminal
● for auxiliary and control current circuit		screw-type terminals
Communication:
Design of the interface / SIMOCODE interface		Yes
Mechanical data:
Product function
● removable terminal for auxiliary and control circuit		Yes
● removable terminal for main circuit		Yes
Connectable conductor cross-section / for auxiliary contacts
● single or multi-stranded	mm²	0.5 ... 4
● finely stranded
— with core end processing	mm²	0.5 ... 2.5
— without core end processing	mm²	0.5 ... 2.5
Weight	kg	0.3
Material / of the enclosure		plastic
Standards:
Certificate of suitability		CE, UL 508, CSA C22.2 Nr.142, C-Tick

Дальнейшая информация

For further product details, refer to the "SIPLUS CMS2000 Basic Unit VIB" Operating Instructions, http://support.automation.siemens.com/WW/view/en/56902401.
