Expansion modules Siemens

Обзор

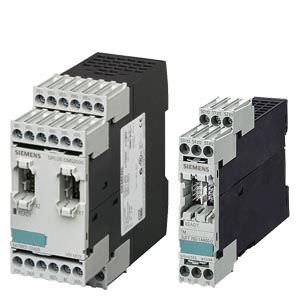

SIPLUS CMS2000 VIB‑MUX expansion modules and temperature modules can be connected to the SIPLUS CMS2000 Basic Unit VIB via the SIMOCODE system interface.

SIPLUS CMS2000 VIB‑MUX expansion modules

Up to two SIPLUS CMS2000 VIB‑MUX expansion modules can be connected to the SIPLUS CMS2000 Basic Unit VIB to expand the vibration channels. In this way, the number of vibration channels can be expanded modularly from 2 to a maximum of 16 channels.

The following configuration options are possible:

  • Basic unit without expansion:
    2 time-synchronous, continuously sampled vibration channels
  • Basic unit with one SIPLUS CMS2000 VIB‑MUX:
    8 + 1: 8 channels via the SIPLUS CMS2000 VIB‑MUX in multiplex mode, 1 channel continuous and independent of the channels connected on the SIPLUS CMS2000 VIB‑MUX
  • Basic unit with two SIPLUS CMS2000 VIB‑MUX:
    16 vibration channels in multiplex mode

SIMOCODE connecting cable for connecting the SIPLUS CMS2000 Basic Unit VIB to the SIPLUS CMS2000 VIB‑MUX see "Accessories".

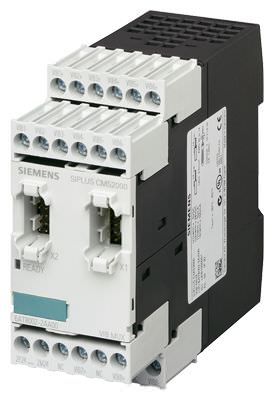

SIPLUS CMS2000 VIB‑MUX expansion module 6AT8002‑2AA00

Temperature modules

Up to two temperature modules can be connected to the SIPLUS CMS2000 Basic Unit VIB.

Each temperature module has three inputs for the connection of up to three analog temperature sensors (sensor types: Pt100/Pt1000, KTY83/KTY84 or NTC) available.

SIMOCODE connecting cable for connecting the SIPLUS CMS2000 Basic Unit VIB to the temperature modules, see "Accessories".

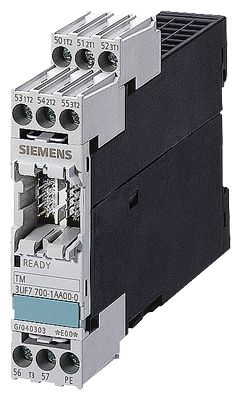

Temperature module 3UF7700‑1AA00‑0

Технические данные



Order number



6AT8002-2AA00

3UF7700-1AA00-0

Product designation



SIPLUS CMS2000 VIB-MUX

temperature module

Product description



Up to two SIPLUS CMS2000 VIB‑MUX expansion modules can be connected to the SIPLUS CMS2000 Basic Unit VIB. Up to 8 IEPE vibration channels can be connected for each expansion module.

-

General technical data:







Protection class IP



IP20

Ambient temperature







  • ● during operation

°C

-20 ... +65

-25 ... +60

  • ● during storage

°C

-25 ... +85

-40 ... +80

  • ● during transport

°C

-25 ... +85

-40 ... +80

Relative humidity / without condensation / during operation

%

5 ... 95

- ... -

physical measuring principle



Vibration acceleration

-

Vibration frequency measuring range

Hz

2 ... 10 000

- ... -

Equipment marking







  • ● acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750



P

A

  • ● acc. to DIN EN 61346-2



P

B

Power supply:







Type of voltage / of the supply voltage



DC

-

Supply voltage / 1 / for DC / Rated value

V

24

-

Active power consumption / maximum

W

2.4

-

Installation/ mounting/ dimensions:







mounting position / recommended



vertical

-

Mounting type



standard rail

screw and snap-on mounting

Width

mm

45

22.5

Height

mm

106

92

Depth

mm

124

Inputs/ Outputs:







Number of sensor inputs / for IEPE sensors



8

-

Number of outputs



1

NO_DATA

Connections:







Type of electrical connection







  • ● of the inputs and outputs



screw terminal

-

  • ● for auxiliary and control current circuit



screw-type terminals

Communication:







Design of the interface / SIMOCODE interface



Yes

-

Mechanical data:







Product function







  • ● removable terminal for auxiliary and control circuit



Yes

-

  • ● removable terminal for main circuit



Yes

-

Connectable conductor cross-section / for auxiliary contacts







  • ● single or multi-stranded

mm²

0.5 ... 4

  • ● finely stranded







  • — with core end processing

mm²

0.5 ... 2.5

  • — without core end processing

mm²

0.5 ... 2.5

Weight

kg

0.27

-

Material / of the enclosure



plastic

-

Standards:







Certificate of suitability



CE, UL 508, CSA C22.2 Nr.142, C-Tick

CE / UL / CSA / CCC / C-TICK / GOST / NOM / ABS / DNV / GL / LRS / RoHS


Дальнейшая информация



For further product details, see "SIPLUS CMS2000 Condition Monitoring Systems Operating Instructions", http://support.automation.siemens.com/WW/view/com/56901901.

For additional information about the temperature module 3UF7700‑1AA00‑0 refer to "Monitoring and control devices" → "Motor management and control devices SIMOCODE 3UF" → "Motor management and control devices SIMOCODE pro 3UF7".
