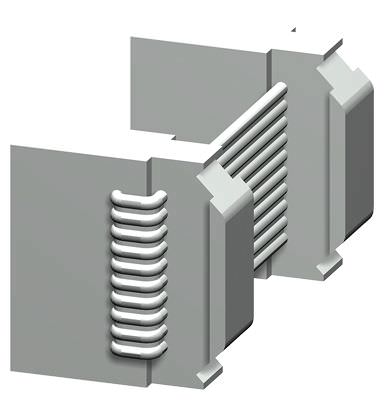

SIMOCODE connecting cables

SIMOCODE connecting cable 3UF7930‑0AA00‑0

The connecting cable is used for connecting the SIPLUS CMS2000 Basic Unit VIB to the SIPLUS CMS2000 VIB‑MUX expansion modules and the temperature modules via the SIMOCODE system bus interface.

The connecting cable with a length of 0.025 m must be used for side-by-side mounting of the basic unit and SIPLUS CMS2000 VIB‑MUX expansion modules or temperature modules on a TH 35‑15 standard mounting rail in accordance with IEC 60715.

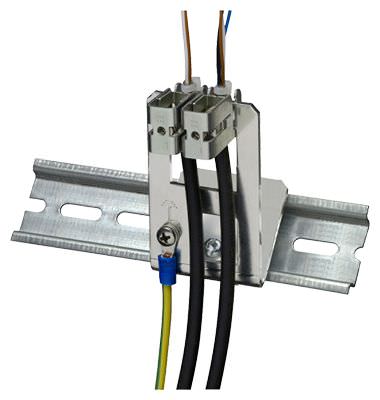

Shield support

6AT8002-4AA00 shield support

A separate shield support must be ordered for the EMC-compliant connection of signal and encoder cables to the SIPLUS CMS2000 Basic Unit VIB and the SIPLUS CMS2000 VIB‑MUX expansion module.

The shield support comprises two shield clamps and five terminal clamps. One shield clamp each is attached to the DIN rail above and below the basic unit. The sensor cable shields are connected to the shield clamps by means of the terminal clamps.

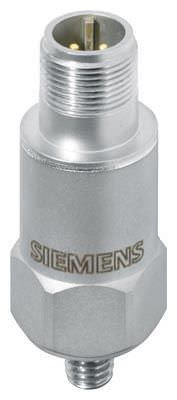

VIB-SENSOR S01 vibration sensor

VIB‑SENSOR S01 vibration sensor 6AT8002‑4AB00

The VIB‑SENSOR S01 vibration sensor with IEPE (integrated electronics piezo-electric) interface can be directly connected to the SIPLUS CMS2000 Basic Unit VIB and the SIPLUS CMS2000 VIB‑MUX expansion module.

The sensor detects vibration accelerations in the frequency range from 0.5 Hz to 15 kHz with a resolution of 100 mV/g.

A threaded screw with an M8 male thread for mounting to the measuring point is included in the scope of delivery. The connecting cable is connected to the vibration sensor via the MIL connector.

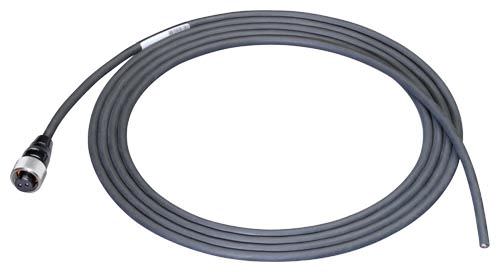

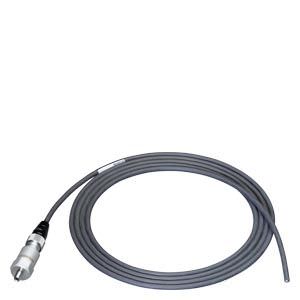

CABLE-MIL connecting cables

CABLE-MIL connecting cables 6AT8002‑4AC03, 6AT8002‑4AC10

The VIB‑SENSOR S01 vibration sensor is connected to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB‑MUX expansion module by means of the CABLE-MIL connecting cable.

This high-quality industrial cable is made of black polyurethane and is assembled on one end with a MIL connector (MIL-C5015). The open cable end of the shielded two-wire cable is connected directly to the screw terminals of the basic unit.

The connecting cable is available in lengths of 3 and 10 m.

Технические данные



Order number



6AT8002-4AC03

6AT8002-4AC10

3UF7930-0AA00-0

product brand name



SIPLUS CMS

SIRIUS

Product designation



Connecting cable CABLE-MIL-300

Connecting cable MIL-CABLE-1000

connecting cable

Product description



For connection of the VIB-SENSOR S01 vibration sensor to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB-MUX expansion module

-

General technical data:









Type of connection



MIL-C5015 / open cable end

-

Type of insulation



black polyurethane

-

Design of the shield



Braided shielding with stranded drain wire

-

Operating temperature

°C

-25 ... +122

- ... -

Cable length

m

3

10

-


Order number



6AT8002-4AA00

Product designation



SIPLUS CMS2000 shield support

Product description



For the EMC-compliant connection of signal and encoder cables to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB-MUX expansion module

General technical data:





Mounting type



standard rail

Number of signal lines / at shield support / connectable



3


Order number



6AT8002-4AB00

product brand name



SIPLUS CMS

Product designation



VIB SENSOR S01

General technical data:





physical measuring principle



Piezo-quartz recorder with integrated evaluation electronics

Frequency / of operating range of sensor / at +/- 3 dB

Hz

0.5 ... 15 000

Sensitivity of the vibration acceleration sensor / typical

mV/gn

100

Resolution of measured value of vibration acceleration / of sensor / minimum

gn

0.002

Vibration acceleration measuring range / Full-scale value

gn

50

Resonant frequency

kHz

23

Signal voltage / for DC

V

10 ... 14

Type of current supply



IEPE 2 to 10 mA

Type of connection



MIL-C5015

Cable length / maximum

m

80

Ambient conditions:





Protection class IP



IP65

Operating temperature

°C

-50 ... +120

Mechanical data:





Material / of the enclosure



stainless steel

Mounting type / other installation / Note



incl. mounting bolts UNF1/4-28 on M8


Дальнейшая информация



For further product details, see "SIPLUS CMS2000 Condition Monitoring Systems Operating Instructions", http://support.automation.siemens.com/WW/view/en/56901901.
