IFN VIB-ACC Siemens

Список изделий: IFN VIB-ACC (1 товар)

Область применения

The IFN VIB-ACC is a rugged interface node for SIPLUS CMS4000, designed for detecting mechanical vibrations in the frequency range from 0.1 Hz to 40 kHz.

The IFN VIB-ACC is used for high-accuracy continuous monitoring in harsh environments.

Обзор

The IFN VIB-ACC (Vibration Acceleration) is a robust interface node for SIPLUS CSM4000:

Provision of measured data for further processing in combination with the SIPLUS CMS X‑Tools software (this analysis software must be ordered separately, see "Analysis Software" → "SIPLUS CMS X‑Tools")
For recording mechanical vibrations in the frequency range from 0.1 Hz to 40 kHz
Can be used for high-accuracy, continuous monitoring in harsh environments

Дизайн

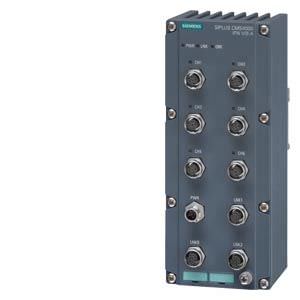

The IFN VIB-ACC has at its front:

LEDs for status display
Six connections for IEPE sensors
Three connections for IEEE1394
One connection for power supply

Connection to the higher-level evaluation PC is via an IEEE1394 bus system operating at 400 Mbit/s.

The module can be mounted on an IEC rail or attached using a mounting set (mounting set see "Accessories" → "Cables and mounting parts").

Функции

With the IFN VIB-ACC it is possible to record

max. six IEPE sensor signals or
five IEPE sensor signals and one analog input signal (e.g. for speed).

The maximum sampling frequency is 192 kHz per channel.

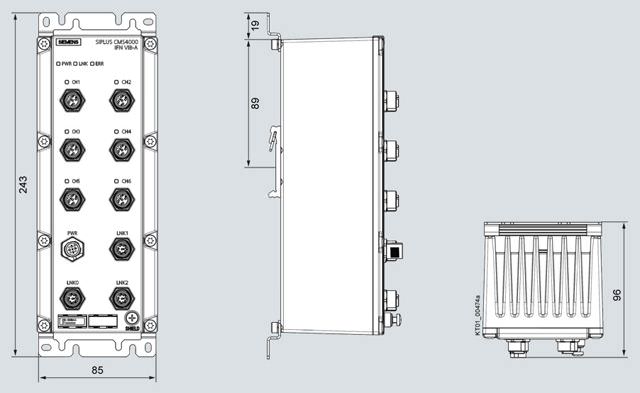

Чертеж

Особенности

Thanks to the rugged design and IP67 degree of protection, the IFN VIB-ACC is suitable for use in rough industrial environments.
The compact design of the IFN VIB-ACC allows its operation in confined areas.
The simple handling of the IFN VIB-ACC ensures fast commissioning and maintenance.

Технические данные

IFN VIB-ACC
Communication (LNK0 … LNK2)
Quantity	3
Connector	Female connector 8-pin (M12)
Protocol	IEEE1394a / b
Data rate	400 Mbit/s
Galvanic isolation	no
Power supply (PWR)
Connector	Male connector 5-pin (M12)
DC input voltage	19.2 … 32 V
DC overvoltage protection	Max. 35 V
DC current consumption	Typ. 0.2 A at 24 V DC
Reverse-polarity protection	yes
Power supply	Stabilized
DC power consumption	Typ. 4.8 W
Electrical isolation	no
Measuring inputs (CH1 … CH6)
Quantity	6
Connector	Female connector 5-pin (M12)
Resolution	16 bits (15 + sign)
DC overvoltage protection	±60 V
Postscanning (parameterizable in SIPLUS CMS X‑Tools)	0.014 / 0.33 / 4 / 8 / 16 / 24 / 48 / 64 / 96 kHz
IEPE sensor input (CH1 … CH6)
Crosstalk attenuation (CTA)	-70 dB at 1 kHz
Signal-to-noise ratio (SNR)	-70 dB
Scanning frequency	192 kHz
Input frequency range	0.0001 … 40 kHz
Accuracy	±0,7 %
Galvanic isolation	no
Cable break monitoring	yes
Cable short-circuit monitoring	yes
Analog input (CH6)
DC input voltage	±30 V
DC input frequency range	0 … 1 kHz
Crosstalk attenuation (CTA)	-78 dB at 1 kHz
Signal-to-noise ratio (SNR)	-69 dB
Scanning frequency	192 kHz
Accuracy	±1 %
Cable break monitoring	no
Cable short-circuit monitoring	no
Functional grounding
Connection	M4 screw with contact washer
Cable cross-section	2.5 mm²
Connecting cable
Communications	Pre-assembled 8-pin cable (shielded)¹⁾
Signal inputs	Pre-assembled 5-pin cable (shielded)¹⁾
Power supply	Pre-assembled 5-pin cable (shielded)¹⁾
Environmental conditions
Operating temperature	-40 ... +65 °C
Storage/transport temperature	-40 ... +85 °C
Degree of protection	IP67
Constructional design
Enclosure	Aluminum
Dimensions (H x W x D) incl. connector
without DIN rail and mounting bracket	210 mm x 86 mm x 87 mm
with DIN rail	210 mm x 86 mm x 96 mm
with mounting bracket	243 mm x 86 mm x 97 mm
Installation
Standard	DIN rail TH 35-15 according to IEC 60715
optional	Mounting bracket¹⁾
Minimum clearances
Front	80 mm
Top	25 mm
Bottom	25 mm
Weight	Approx. 1240 g
Approvals
CE	Industrial environment

¹⁾ Not included in scope of delivery, see "Accessories" → "Cables and mounting parts".

Дальнейшая информация

For further product details, refer to the "IFN VIB-ACC" Operating Instructions, http://support.automation.siemens.com/WW/view/en/40836288.
