Область применения



The MCN11 media converter node is a rugged media converter to increase the range of the IEEE1394 bus. The MCN11 converts the electrically transferred data bidirectionally into signals for the optical transmission with which distances up to 500 m can be covered.

Обзор



The MVN11 media converter node is a robust network component for SIPLUS CMS4000.

Advantages:

  • Bidirectional conversion between an electrical and an optical IEEE1394
  • To extend the range up to max. 500 m
  • Can also be used in conjunction with the RPN IEEE1394B repeater node

Дизайн



The MCN11 media converter node has an electrical IEEE1394a interface and an optical IEEE1394b interface.

Two MCN11 nodes are inserted into the path in order to extend the bus distance. The optical bus cable used for the extension runs between the two nodes.

Alternatively, the MCN11 can be directly connected optically to an RPN IEEE1394B T001/T002 multi-port repeater.

The cable 6AT8000‑2AB20‑2AA2 and the mounting set 6AT8000‑2BB00‑0XC0 are available as optional accessories, see "Accessories" → "Cables and mounting parts".

Чертеж

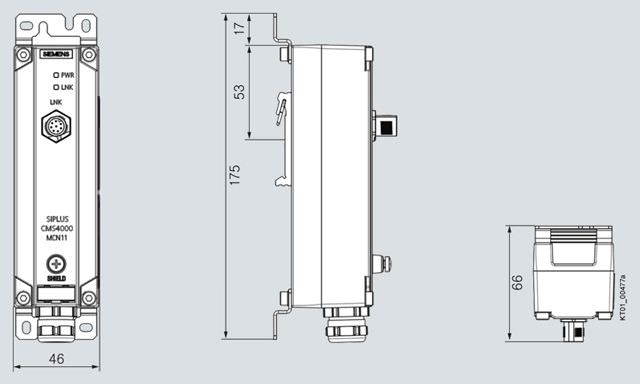

MCN11 Media Converter Node

Технические данные



MCN11



Interfaces and connecting cables



IEEE1394a electrical


  • Quantity

1

  • Connector

Male connector 8-pin (M12)

  • Data rate

400 Mbit/s

  • Usable cable (connection: IFN to MCN11)

Pre-assembled 8-pole cable with shield (length: 30 cm), type 6AT8000‑2AB20‑2AA2

  • Power consumption MCN11

Approx. 0.6 W

IEEE1394b optical


  • Quantity

1

  • Connector

Duplex SC 62.5/125 µm MMF1)

  • Wavelength

850 nm

  • Data rate

400 Mbit/s

  • Usable fiber-optic cables

50/125 μm MMF1) up to 500 m long,
62.5/125 μm MMF1) up to 220 m long

Functional grounding



Version

M4 screw on the front (shield)

Terminal area

Cable lug for M4 screw

Environmental conditions



Operating temperature

0°... + 65 °C

Storage/transport temperature

-40 ... + 85 °C

Degree of protection

IP67

Constructional design



Enclosure

Aluminum

Dimensions (H x W x D)


  • without DIN rail and mounting bracket

160 mm x 46 mm x 56 mm

  • with DIN rail

160 mm x 46 mm x 65 mm

  • with mounting bracket

177 mm x 46 mm x 66 mm

Installation


  • Standard

DIN rail TH 35-15 according to IEC 60715

  • optional

Mounting bracket2)

Minimum clearances


  • Front

80 mm

  • Top

25 mm

  • Bottom

25 mm

Weight

Approx. 460 g

Approvals



CE

Industrial environment



1) MMF = multimode fiber.

2) The mounting set 6AT8000-2BB00-0XC0 is not included in the scope of delivery, see "Accessories" → "Cables and mounting parts".

Дальнейшая информация



For further product details, refer to the "MCN11" Operating Instructions, http://support.automation.siemens.com/WW/view/en/40836171.
