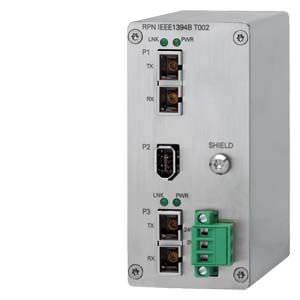

RPN IEEE1394B T002 Siemens

Обзор



The RPN IEEE1394B T001 is a multi-port repeater with two optical interfaces and one electrical interface in accordance with the IEEE1394B standard.

Технические данные



CMB IEEE1394A T002



Interfaces



IEEE1394b optical P1, P3


  • Quantity

2

  • Design

Duplex SC 62.5 / 125 μm MMF1); 850 nm

  • Usable fiber-optic cables

50 / 125 μm MMF1) up to 500 m long,
62.5 / 125 μm MMF1) up to 220 m long

  • Data rate

400 Mbit/s

IEEE1394a electrical P2


  • Quantity

1

  • Design

6-pin socket, IEEE1394a, standard

  • Data rate

400 Mbit/s

Power supply 24 V, 0 V


  • Design

3-pin Phoenix Contact terminal block

  • Terminal area

0.2 … 2.5 mm2

  • Input voltage

18 ... 32 V DC

  • Power loss at 24 V DC

2.4 W

  • Current consumption at 24 V DC

0.1 A

Grounding terminal


  • Design

M4 screw on the front panel: SHIELD

  • Terminal area

Cable lug for M4 screw

Cables



FireWire

according to IEEE1394a/b standard

Environmental conditions / EMC



Operating temperature

0 ... +55 °C

Storage/transport temperature

-25 ... +85 °C

Relative humidity during operation

< 95 %, non-condensing

Radio interference level

EN 55022:2007 (Class A)

Interference immunity

IEC 61000 (industrial area)

Degree of protection

IP20

Constructional design



Dimensions (H x W x D)

105 mm x 49 mm x 93 mm

Minimum clearances


  • Front

80 mm

  • Top

25 mm

  • Bottom

25 mm

Design

Stainless steel

Color

Silver

Weight

457 g

Installation

DIN rail TH 35‑15 (thickness 2.3 mm) according to IEC 60715

Approvals



CE

For use in industrial and office areas



1) MMF: multimode fiber.

Дальнейшая информация



For further product details, refer to the "RPN IEEE1394B T002" Manuals/Operating Instructions, http://support.automation.siemens.com/WW/view/en/46617912/133300.
