CMB IEEE1394A T011 Siemens

Обзор

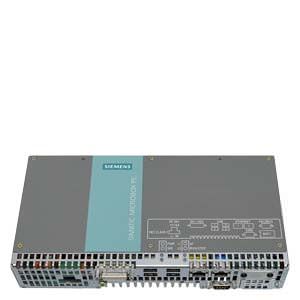

The CMB IEEE1394A T001 Communication Bundle is a kit for adding two electrical IEEE1394a interfaces to a Microbox PC.

Via the FireWire bus (IEEE1394), it connects SIPLUS CMS interface nodes at 400 Mbit/s to a higher-level industrial PC.

The following are included in the scope of supply:

  • PC104 FireWire communication card
  • Microbox expansion frame, mounting material, connection cables and sockets

Технические данные



CMB IEEE1394A T011



Requirements



Operating system

MICROSOFT WINDOWS XP Professional with SP 2 or SP 3

or

MICROSOFT WINDOWS XP Embedded with SP 2 or SP 3

PC/104 card



Power supply

Over PC/104 Plus bus. No external power supply required.

Connections

1 x internal: PC104 Plus bus
Port1: IEEE1394a/b
Port2: IEEE1394a/b
Port3: IEEE 394a

Jumper

5 x jumpers: INT, SEL, CLK, REQ, GNT

Dimensions

90 mm x 96 mm

Environmental conditions



Operating temperature of PC/104 card

-25 … +85 °C, no condensation permissible

Transport/storage temperature

-40 … +85 °C



Дальнейшая информация



For further product details, refer to the "CMB IEEE1394A T011" Operating Instructions, http://support.automation.siemens.com/WW/view/en/35440422.
