CTN WatchGuard T001 Siemens

Обзор

The CTN WatchGuard T001 module is used for PC monitoring.

Coupling to a host industrial PC over USB 1.1 (12 Mbit/s)
Provision of measured data for further processing in combination with the SIPLUS CMS X‑Tools software (this analysis software must be ordered separately, see "SIPLUS CMS X‑Tools")
Two binary outputs
Can be mounted on an IEC rail

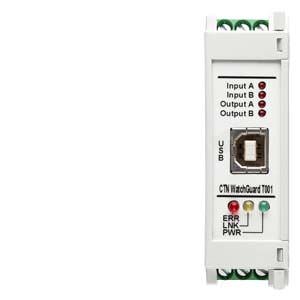

CTN WatchGuard T001
Connections
Power supply	Over USB interface
Input voltage	5 V DC
Power loss at 5 V DC	Max. 1 W
Current consumption at 5 V DC	Max. 200 mA
USB interface	USB 1.1
Quantity	1
Design	USB socket type B
Data rate	12 Mbit/s
Standard	USB 1.1
Input interfaces	IA+, IA-, IB+, IB-
Quantity	2
Design	3-pin terminal blocks
Input voltage	0 ... 24 V
Input withstand voltage	±48 V
Insulation strength	±0.4 kV
Input current	2.1 mA ≤ I ≤ 3.5 mA
Scanning frequency	≤ 100 Hz / binary input
Resolution	1 bit
Response time	≥ 10 ms
Switching threshold logical "0"	U < + 5 V
Switching threshold logical "1"	U > + 12 V
Hysteresis	< 200 mV
Output interfaces	NOA, NCO, NOB, NCB
Quantity	2
Design	3-pin terminal blocks
Version	One NC contact (NCx) and one NO contact (NOx) per relay
Switchable power	60 W, 125 VA
Switchable voltage	150/210 V DC/AC
Insulation strength	±0.4 kV
Permissible cables / cable length
USB	In accordance with USB standard
Inputs/outputs	Maximum length: 3 m
Permissible environmental conditions / EMC
Operating temperature	0 ... +55 °C
Storage/transport temperature	-25 ... +85 °C
Relative humidity during operation	5 ... 95 %, non condensing
Radio interference level	EN 55011
Interference immunity	IEC 61000-6-2
Degree of protection	IP20
Constructional design
Dimensions (H x W x D)	71 mm x 18 mm x 107 mm
Version	Plastic
Color	White
Weight	104 g
Installation	DIN rail TH 35‑15 (thickness 2.3 mm) according to IEC 60715
Approvals
CE	yes

For further product details, refer to the "CTN Watchguard T001" Manual, http://support.automation.siemens.com/WW/view/en/35431591.
