Overview of cables for SIPLUS CMS4000

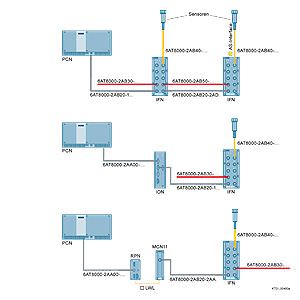

Various cables are available for connecting the different components of a CMS4000 setup:

CABLE‑IEEE1394A‑66/46 (6AT8000‑2AA00‑....):
for coupling ION‑ION, ION‑PC, PC‑RPN and ION‑RPN over IEEE1394 (FireWire);
CABLE‑IEEE1394A‑46‑450 permits the connection of a notebook to the system.
CABLE‑IEEE1394A‑8F (6AT8000‑2AB20‑1...):
for coupling PC‑IFN, ION‑IFN and RPN‑IFN over IEEE1394 (FireWire)
CABLE‑IEEE1394A‑8M (6AT8000‑2AB20‑2AA.):
for coupling IFN‑MCN11 over IEEE1394 (FireWire)
CABLE‑Power (6AT8000‑2AB30‑....):
for power supply to the IFN. The IFN ADD modular set must be used to pass on the power from the first IFN to further IFNs in a linear topology (see below).
IFN ADD ((6AT8000‑2AB50‑....):
modular set to directly pass on the power supply from one IFN to an adjacent IFN. Consisting of power cable and Y connector. The Y connector is required because passing on is via the LNK socket to which the IEEE1384 bus cable to the next IFN must be connected in addition to the power cable.
CABLE‑IEEE1394A‑88 (6AT8000‑2AB20‑2AD.):
for coupling IFN‑FN over IEEE1394 (FireWire)
CABLE‑IO (6AT8000‑2AB40‑....):
for connecting the sensors to IFN

Mounting sets are available for IFN and MCN11. They contain mounting brackets for wall mounting.

The IFN coping set contains a set of caps for sealing unused IFN sockets.

An extensive range of accessories is available for setting up a SIPLUS CMS4000 Condition Monitoring System:

Further product details:

For cables, refer to the "Cabling" Operating Instructions, http://support.automation.siemens.com/WW/view/en/43257158
For mounting sets and the IFN coping set, refer to the manuals/operating instructions, http://support.automation.siemens.com/WW/view/en/34651266/130000
