RS 520/23 - Shutter Blind Actuator, 1 x AC 230 V, 6 A Siemens

Обзор



.

Функции

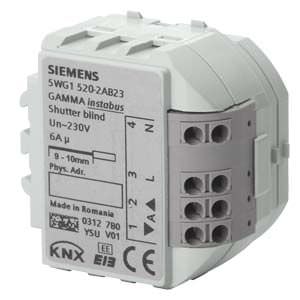

RS 520/23

Shutter Blind Actuator, 1 x AC 230 V, 6 A

  • For the separate control per actuator channel of a sun protection‚ damper‚ door or window drive with a motor for AC 230 V and electromechanical limit switches
  • Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm2
  • With bus connection module
  • Modular installation device for mounting in AP 118 automation module box or AP 641 room control box

Технические данные



Размеры (Ш х В х Г)

50,2 x 48,8 x 35,5 мм



Дальнейшая информация



Дополнительная информация:
The AP 641 room control box and AP 118 automation module box must be ordered separately.
See chapter Modular Installation System - Room control box - Module boxes.
