RS 525/23 - Universal Dimmer, 1 x AC 230 V, 10...250 VA, (R,L,C load) Siemens

Обзор



.

Функции

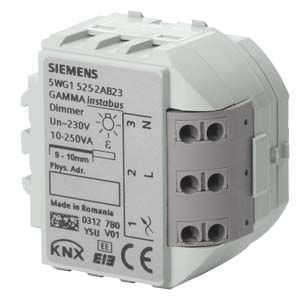

RS 525/23

Universal Dimmer, 1 x AC 230 V, 10...250 VA, (R,L,C load)

  • Rated operational voltage AC 230 V
  • Rated power at +35°C ambient temperature: 10…250 VA
  • Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm2
  • With bus connection module
  • Modular installation device for mounting in AP 118 automation module box or AP 641 room control box

Технические данные



Размеры (Ш х В х Г)

50,2 x 48,8 x 35,5 мм



Дальнейшая информация



Дополнительная информация:
The AP 641 room control box and AP 118 automation module box must be ordered separately.
See chapter Modular Installation System - Room control box - Module boxes.
