UP 525/..3 - Universal Dimmer, 1 x AC 230 V, 10 ... 250 VA Siemens

Обзор



Name

ID

Описание продукции

UP 525/03

5WG1525-2AB03

Universal Dimmer, 1 x AC 230 V, 10 ... 250 VA, with mounting frame and BTI interface

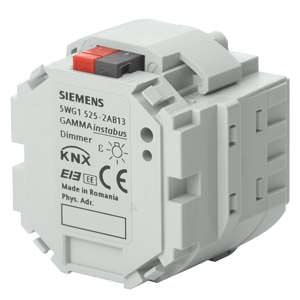

UP 525/13

5WG1525-2AB13

Universal Dimmer, 1 x AC 230 V, 10...250 VA



Функции



UP 525/..3

Universal Dimmer, 1 x AC 230 V, 10 ... 250 VA

  • One output for switching and dimming resistive, inductive or capacitive loads
  • Automatic adjustment to leading edge or trailing edge control, depending on the type of load
  • Rated operational voltage 230 V AC
  • Rated frequency 50...60 Hz
  • Rated power at +35°C ambient temperature: 10…250 VA
  • Electronic protection of the output against overload, short circuit and temperature rise
  • Screwless terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5...2.5 mm²
  • Bus-powered electronics
  • Integrated bus coupling units, bus connection via bus terminal
  • For insertion in flush-mounting switch and socket boxes 60 mm in diameter and 60 mm deep
