TXM1.8T - 8 Triac output module Siemens

Обзор



.

Функции

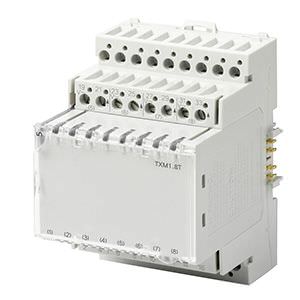

TXM1.8T

8 Triac output module

8 Triac outputs, signaled with green LED.

8 AO, configurable for:

  • Permanent contact
  • Three-point positioning output with internal stroke model
  • Pulsewidth-modulated output (PWM)
  • Switching voltage AC 24 V
  • Switching current AO 3-position: 250 mA / 6 VA per output
  • Switching current AO PWM, BO: 125 mA / 3 VA per output

Технические данные



Рабочее напряжение

DC 22.5...26 V

Потребляемая мощность

1.0 Вт

Вес

0.198 кг

Размеры (Ш х В х Г)

64 x 77.5 x 98 мм

Описание

N8179



Дальнейшая информация



Дополнительная информация

Easy-to-understand operation:

  • Local priority operation as per VDI3814
  • Simple display concept with LCD and colored LEDs
