RDD100..RF.. - Wireless room thermostat with LCD Siemens

Обзор



Name

ID

Описание продукции

Рабочее напряжение

Напряжение питания

Релейные выходы

Дискретный выход, ток коммутируемой цепи

Дискретный выход, ток коммутируемой цепи

RDD100.1RF

S55770-T319

Wireless room thermostat with LCD

DC 3 V

Micro (2xAAA)







RDD100.1RFS

S55770-T281

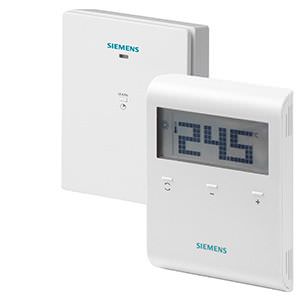

Wireless room thermostat with LCD, incl. receiver

DC 3 V for thermostat, AC 230 V for receiver

Micro (2xAAA)

Change-over contact, potential-free on receiver

8 (2) A

AC 24…230 V on receiver



Функции



RDD100..RF..

Wireless room thermostat with LCD

Battery-powered DC 3 V thermostat, no time switch

  • 2-position control with on / off control output
  • Operating modes: Comfort, Economy and Protection mode
  • Adjustable commissioning and control parameters
  • Color of housing front: signal white RAL9003 (NCS S 0502-G)

Технические данные



Напряжение питания

Micro (2xAAA)

Диапазон задания уставки

5...35 °C

Дифференциал переключения

1 K

Радиочастота

433 МГц

Класс защиты

IP30

Размеры (Ш х В х Г)

106 x 85 x 22 мм
