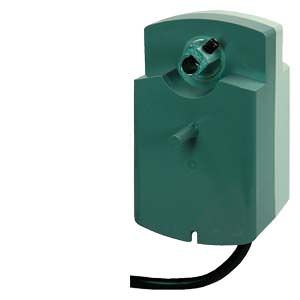

GQD..6A - Rotary air damper actuators 2 Nm, with spring return Siemens

Обзор



Name

ID

Описание продукции

Рабочее напряжение

Сигнал позиционирования

Длина кабеля

GQD121.6A

BPZ:GQD121.6A

Rotary damper actuator with spring return, AC/DC 24 V, 2-position, 2 Nm, 30/15 s

AC 24 V; DC 24 V

2-position

0.9 м

GQD321.6A

BPZ:GQD321.6A

Rotary damper actuator with spring return, AC 230 V, 2-position, 2 Nm, 30/15 s

AC 230 V

2-position

0.9 м



Функции



GQD..6A

Rotary air damper actuators 2 Nm, with spring return

- Operate direct driven dampers used to control air flow in duct specifically to adress two position domestic and light commercial barrel damper application.
- For shaft dia 8
- Air damper area approx. 0.3 m2
- With housing made of plastic and 0.9 m connecting cable

Технические данные



Крутящий момент

2 Нм

Площадь заслонки, до

0.3 м²

Время позиционирования

Open with motor: 30 с; Closing with spring: 15 с

Длина кабеля

0.9 м

Класс защиты

IP40

Размеры (Ш х В х Г)

70 x 121.4 x 62.5 мм

Описание

N4606
