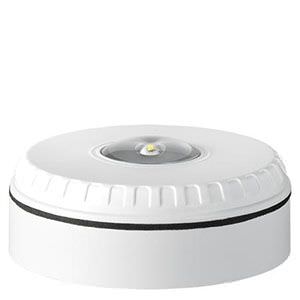

SOL-LX-C-WW - Beacon with white housing and white flash light
for ceiling mounting Siemens

Обзор



.

Функции



SOL-LX-C-WW

Beacon with white housing and white flash light
for ceiling mounting

Beacon for use where low current consumption is a key consideration. Ideal for bedrooms, bathrooms and toilets.

  • White ABS plastic housing for surface mounting
  • For ceiling mounting
  • White flash color
  • Ultra low current consumption
  • Up to 7.5 m diameter coverage (C-3-7.5)
  • Selectable flash rate from 0.5 Hz to 1 Hz to reduce the current consumption
  • Selectable range reduction to 3 m reduces the power consumption up to 50 %

Технические данные



Стандарт

EN 54-23

Степень защиты

IP33C (IP65 with DAB)

Рабочее напряжение

DC 9...60 V

Диапазон рабочих температур

-25...+70 °C

Потребляемый ток

10...25 мA

Размеры (ø x В)

93 x 37 mm; 93 x 65 mm with adapter base

Цвет

White / white

Описание

A6V10423405
