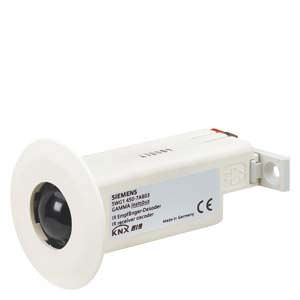

S 450/03 - IR Receiver decoder Siemens

Обзор



.

Функции



S 450/03

IR Receiver decoder

  • For receiving IR signals transmitted from IR hand-held transmitters
  • Conversion of IR signals received from up to 32 IR channels into bus telegrams
  • Configurable evaluation of the IR signals per IR channel as single button or as button pair
  • Per IR button selectable functions


  • Switching on/off/over
  • Switching on or off at either rising or falling edge
  • Single button dimming
  • Single button sun protection control
  • 1-/8-bit scene control
  • 8-/16-bit value
  • Percentage value
  • Temperature value
  • Brightness value
  • Positively driven operation


  • Depending on the selected main function


  • Per IR button selectable additional function executed either after a time delay (time delay configurable from 100 ms to 6550 s) or alternatively on a long button press


  • Per IR button pair selectable functions


  • 2-button dimming with stop telegram
  • 2-button sun protection control
  • Transmission variable percentage value
  • Transmission variable 8-bit value
  • 1-/8-bit scene control
  • Positively driven operation


  • Depending on the selected main function: per IR button selectable additional functions


  • Switching on/off
  • 8-16-bit value
  • Percentage value
  • Temperature value
  • Brightness value
  • Recall/save 1-bit scene 1
  • Recall/save 1-bit scene 2
  • Recall 8-bit scene
  • Positively driven on/off/deactivate


  • Blocking can selected for each IR button and configured individually
  • Integrated bus coupling units, Bus connection via bus terminal
  • Bus-powered electronics
  • Including clamping spring and rosette for installation in ceilings, walls or lights
  • For commissioning when mounted, a magnet is required

Технические данные



Размеры (Ш х В х Г)

25 x 26 x 75 мм
