UP 588/..3 - Touch Panel Siemens

Обзор



Name

ID

Описание продукции

UP 588/13

5WG1588-2AB13

Информационная панель UP 580/13, тактильная, 320х240 5,7'' TFT, регулируемая LED-подсветка, питание 24V AC/DC

UP 588/23

5WG1588-2AB23

Информационная панель UP 580/23, тактильная, 320х240 5,7'' TFT, регулируемая LED-подсветка, питание 24V AC/DC (снимается с производства)



Функции

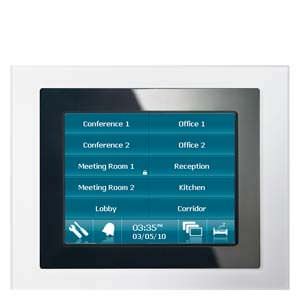

UP 588/..3

Touch Panel

  • Multifunctional display/operating device for the KNX, with 320 x 240 pixels, 5.7" TFT color display and touch screen
  • Dimming of LED background lighting over the operator interface
  • For the display and operation of at least 210 communication objects on at least 20 display pages
  • An additional page for the display and acknowledgement of at least 16 alarms
  • Time program as weekly program for at least 110 communication objects and at least 10 switching tasks per weekday
  • Presence simulation for at least 50 communication objects
  • A trend module for storing and displaying graphics of the status values
  • 1-bit or 8-bit scene control for at least 64 scenes
  • At least 32 AND/OR operations, each comprising up to at least 4 communication objects
  • At least 16 reference conditions for tripping one switching task respectively
  • Individual password protection for each display page
  • Buffered real-time clock and display of time and date
  • Selection of at least 4 different design templates as operator and display interface
  • Display of a loadable image as a start screen page or with display of a slide show containing at least 100 loadable images instead of a start screen page
  • USB interface for loading images and symbols
  • USB cable, 1 m long and a transfer rate of 480 MBit/sec.
  • Pushbutton for device reset
  • Integrated bus coupling units, Bus connection via bus terminal
  • Flush-mounting device in flush-mounting/hollow-wall box

Технические данные



Размеры (Ш х В х Г)

161,5 x 135 x 64 мм



Дальнейшая информация



Дополнительная информация:
The matching design frame and the flush-mounting/hollow-wall box must be ordered separately.
