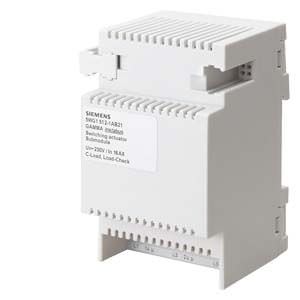

N 562/21, N 512/21, N 513/21 - Switch actuator, submodule Siemens

Обзор



Name

ID

Описание продукции

N 512/21

5WG1512-1AB21

Выключатель нагрузки N 512/21, модульный (дополнительный модуль), 3х230-400V AC 16A, автоподстройка под характер нагрузки, для установки на DIN-рейку, 3 ТЕ

N 513/21

5WG1513-1AB21

Выключатель нагрузки N 513/21, модульный (дополнительный модуль), 3х230-400V AC 20A, автоподстройка под характер нагрузки, для установки на DIN-рейку, 3 ТЕ

N 562/21

5WG1562-1AB21

Выключатель нагрузки N 562/21, модульный (дополнительный модуль), 3х230-400V AC 10A, автоподстройка под характер нагрузки, для установки на DIN-рейку, 3 ТЕ



Функции



N 562/21, N 512/21, N 513/21

Switch actuator, submodule

  • 3 Floating relay contacts
  • Rated contact voltage, 230 V AC
  • Interface for connecting a switching actuator submodule and software for controlling up to 4 switching actuator submodules
  • Selectable 3-phase switching function (simultaneous switching of 3 outputs)
  • Direct operation (local operation via main module)
  • LED for indicating direct operation for each output via main module
  • Selectable 1- to 3-stage fan speed control function
  • Function for controlling thermo-electrical drives
  • Integrated 8-bit scene control
  • Time functions: off delay, on delay, Timer mode (automatic stairwell switch), Night mode (lighting for cleaning), Warning of impending off
  • Logical functions: Positively driven operation, Logic function (2 objects), Can be inverted per output (NO contact/NC contact)
  • Per channel: transmitting status, Operating hours counter with limit monitoring, Switching cycle counter with limit monitoring, Load current recording, Load current monitoring
  • Power supply for its own electronics and for the electronics of the connected switching actuator submodules via the bus voltage
  • Bus connection via bus terminal

Технические данные



Ширина в единицах DIN

3 MW
