N 567/.. - Switch actuator Siemens

Обзор



Name

ID

Описание продукции

Ширина в единицах DIN

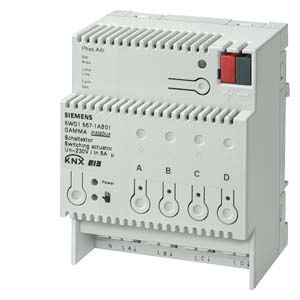

N 567/01

5WG1567-1AB01

Выключатель нагрузки N 567/1, 4х230V AC 8A, для установки на DIN-рейку, 4 ТЕ

4 MW

N 567/11

5WG1567-1AB11

Выключатель нагрузки N 567/11, 8х230V AC 8A, для установки на DIN-рейку, 4 ТЕ

4 MW

N 567/12

5WG1567-1AB12

Выключатель нагрузки N 567/12, 8х230V AC 2A, для установки на DIN-рейку, 4 ТЕ

4 MW

N 567/22

5WG1567-1AB22

Выключатель нагрузки N 567/22, 16х230V AC 10A, для установки на DIN-рейку, 8 ТЕ

8 MW



Функции



N 567/..

Switch actuator

  • One potential-free relay contact per output channel
  • Electronics powered via an integrated power supply unit for 230 V AC
  • Pushbutton for switching between bus operation and local operation
  • A yellow LED indicating local operation
  • 1 red LED per output channel to indicate switch status
  • One pushbutton per output channel to activate the output through a UM-function in local operating mode
  • Operational with an 230 V AC supply, (even with no bus voltage and faulty or not activated bus communication)
  • Choice between identical or individually parameterized outputs
  • Operating mode selectable for each channel (normal operation, time switch operation)
  • Adjustable switching on/off delay
  • Selectable logic link (AND/OR) between two communication objects and presettable logic operator for bus voltage return
  • Possibility to add an additional night operation object per output channel for time limited activation of output (lighting) at night
  • Selectable warning signal prior to imminent switching off in form of three times short off/on switching (flashing)
  • Possibility to add one additional status indicator object per output channel, sending of status objects on request and/or automatically after change
  • Possibility to add additional object to drive the integrated 8-bit scene controller, integrated 8 bit scene control and linking each output channel to up to 8 scenes
  • Unchanged switch state for all output channels in case of power failure
  • Selectable switch state after return of power for each output channel
  • Integrated bus coupling units, bus connection via bus terminal or contact system to data rail, only 50% of standard busload
  • Modular installation devices for mounting on TH35 EN 60715 mounting rail
